companies

ATX

ATX

Europe's market leader in the manufacture of test adapters for electronic test procedures. As a specialised solution provider, the company designs and produces customer-specific products in semi-automated individual and small series production. Most of the devices are unique precision-engineered items with varying degrees of complexity. Customers use the products for in-circuit, functional and final testing of electronic assemblies and printed circuit boards. ATX stands out from the competition in particular due to its high level of innovation and quality. As a medium-sized company, the ATX Group employs over 170 people at two locations in Upper Bavaria (P?rgen) and Baden-W?rttemberg (Ehningen).

Source: Product Overview Mechanical Test Fixtures (provided HTML file).

Products: 54

MMI series

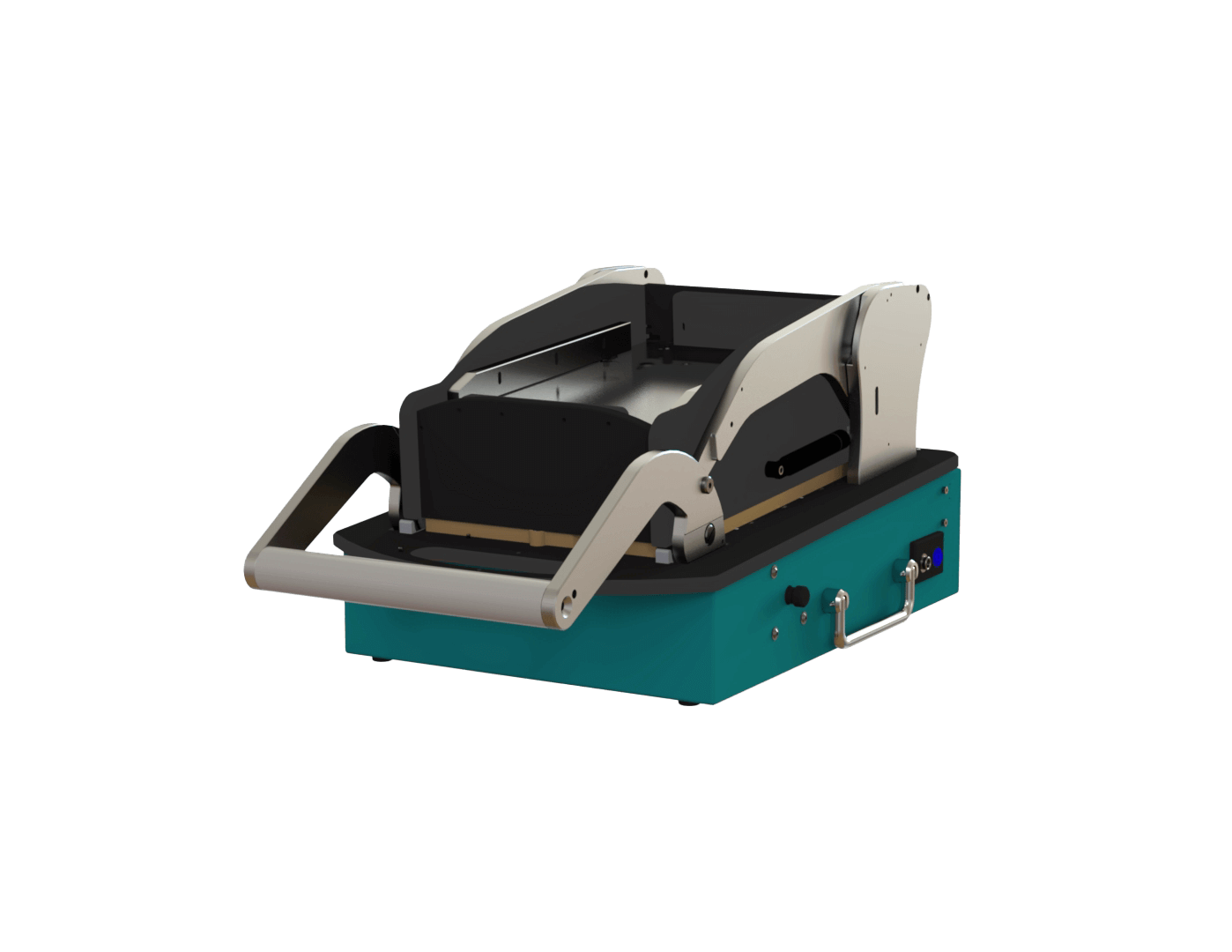

MMI-A

MMI-A (100683)

Moving plate: 185 x 310 mm

MMI-A (100683)

Moving plate: 185 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00145

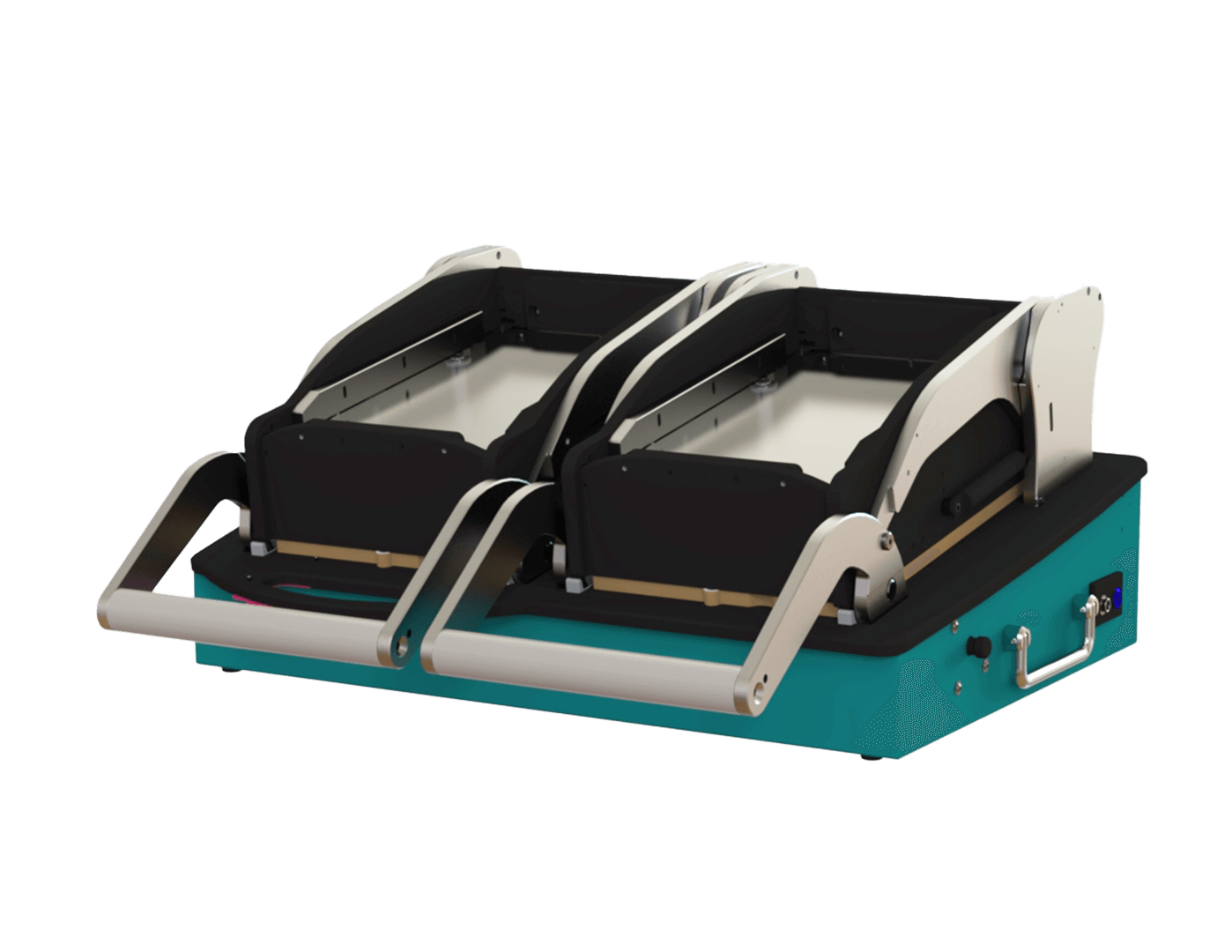

MMI-A-DO

MMI-A-DO (100659)

Moving plate: 2x 185 x 310 mm

MMI-A-DO (100659)

Moving plate: 2x 185 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00117

High housing: E01-00118

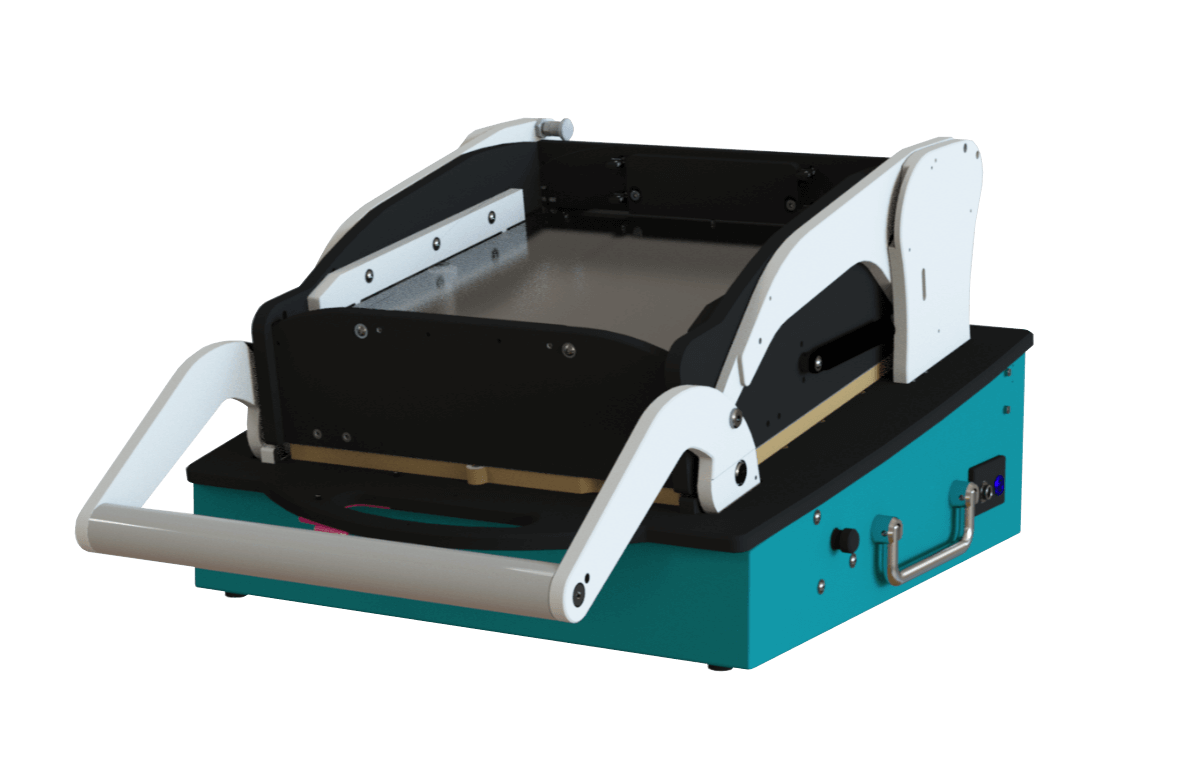

MMI-B

MMI-B (100639)

Moving plate: 275 x 310 mm

MMI-B (100639)

Moving plate: 275 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00115

High housing: E01-00116

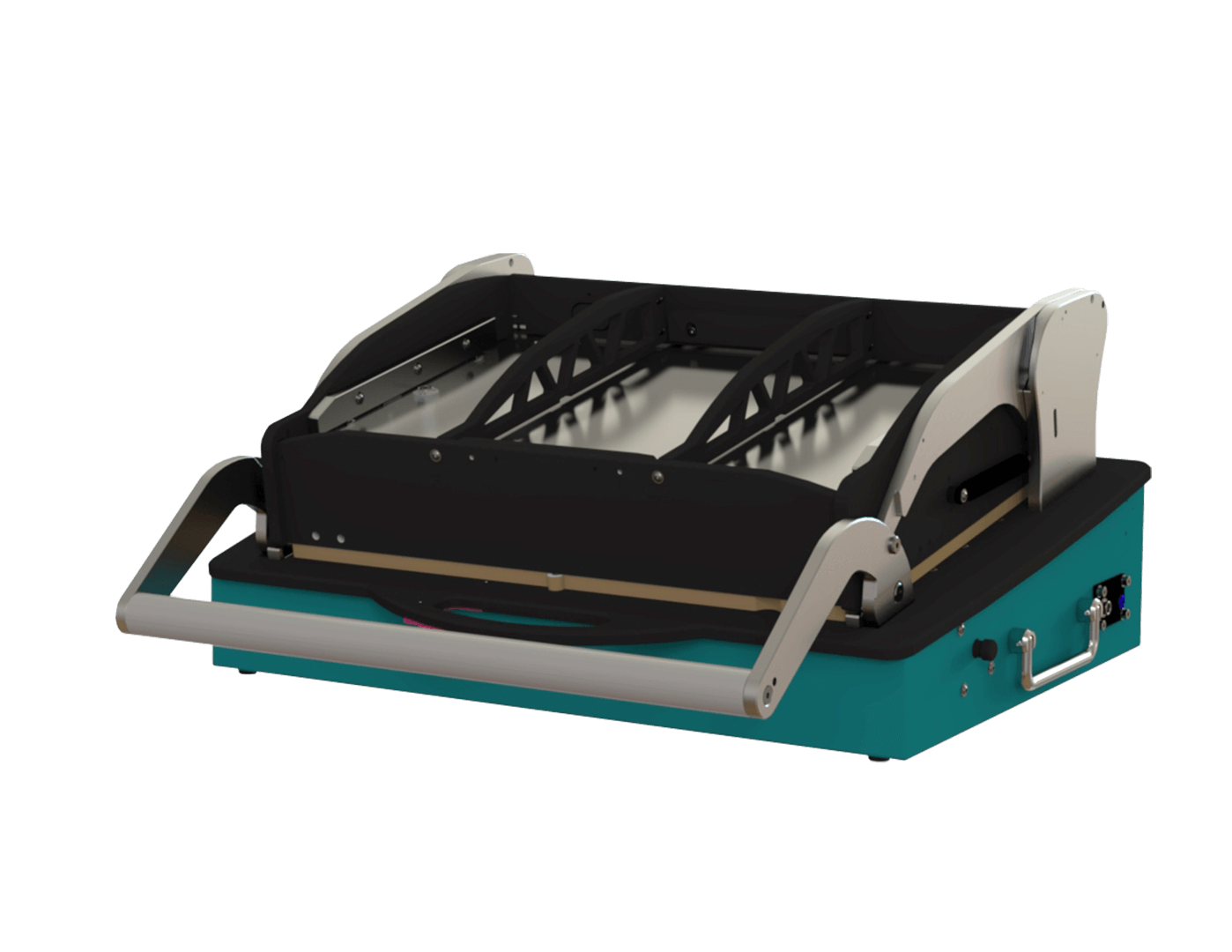

MMI-C

MMI-C (100640)

Moving plate: 445 x 310 mm

MMI-C (100640)

Moving plate: 445 x 310 mm

Needle force:1.200 N

Standard housing: E01-00117

High housing: E01-00118

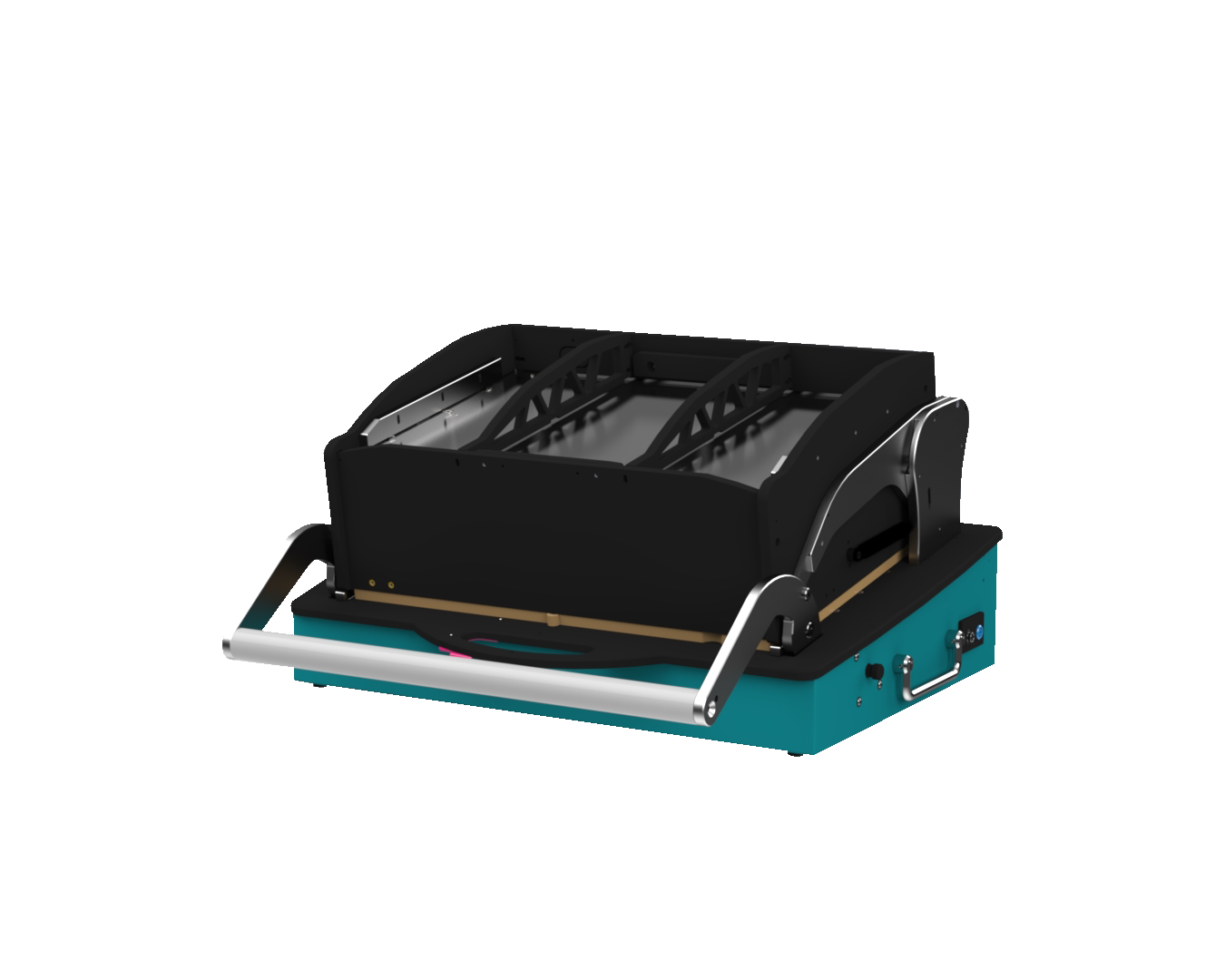

MMI-CH

MMI-CH (100691)

Moving plate: 445 x 310 mm

MMI-CH (100691)

Moving plate: 445 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00117

High housing: E01-00118

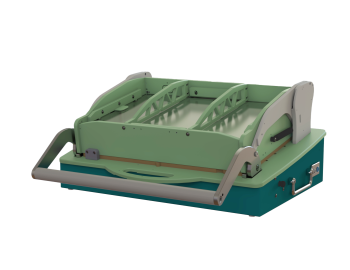

MMI-CI

MMI-CI (100694)

Moving plate: 445 x 310 mm

MMI-CI (100694)

Moving plate: 445 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00117

High housing: E01-00118

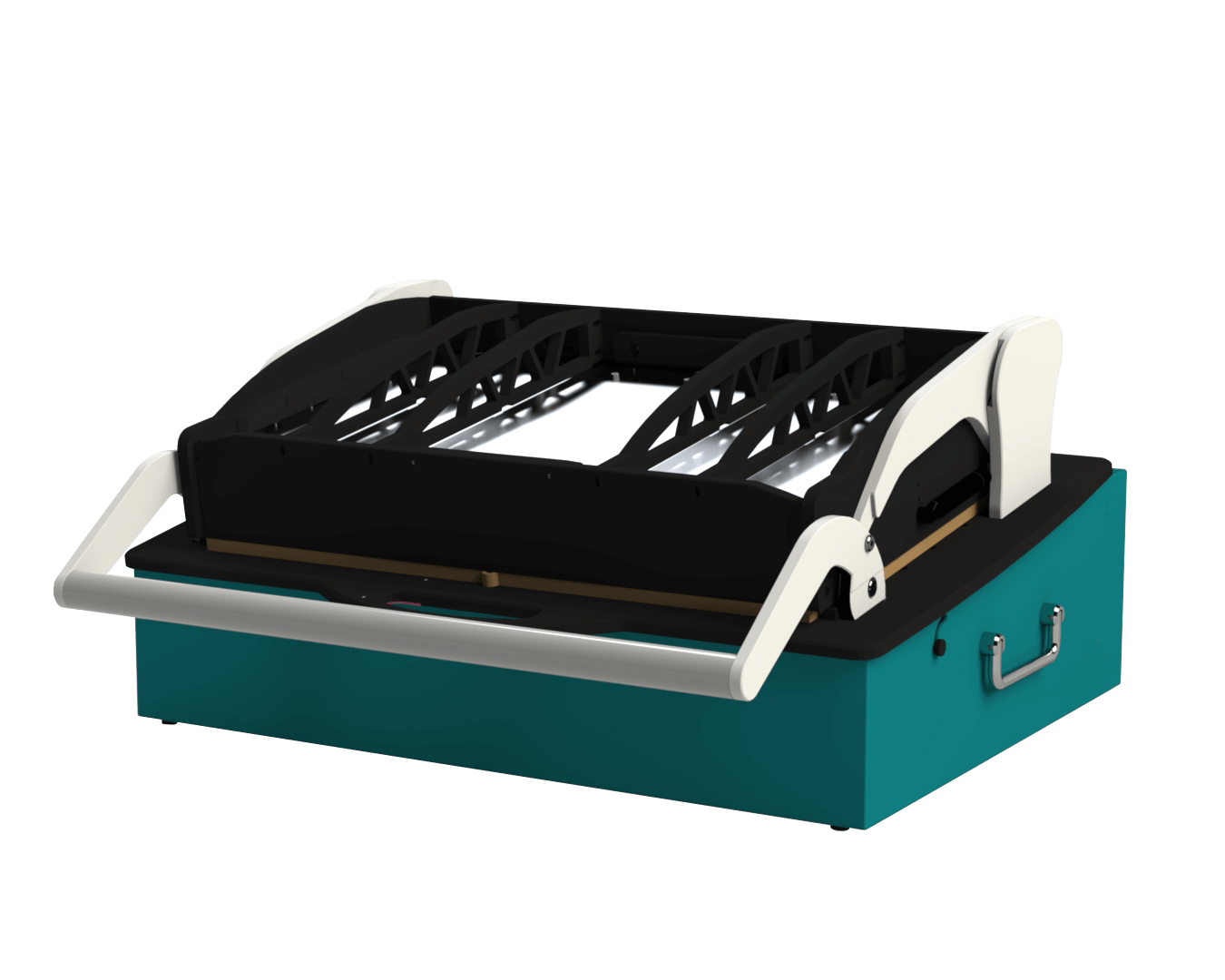

MMI-DV

MMI-DV (100669)

Moving plate: 530 x 330 mm

MMI-DV (100669)

Moving plate: 530 x 330 mm

Needle force: 1,200 N

Standard housing: E01-00125

High housing: E01-00133

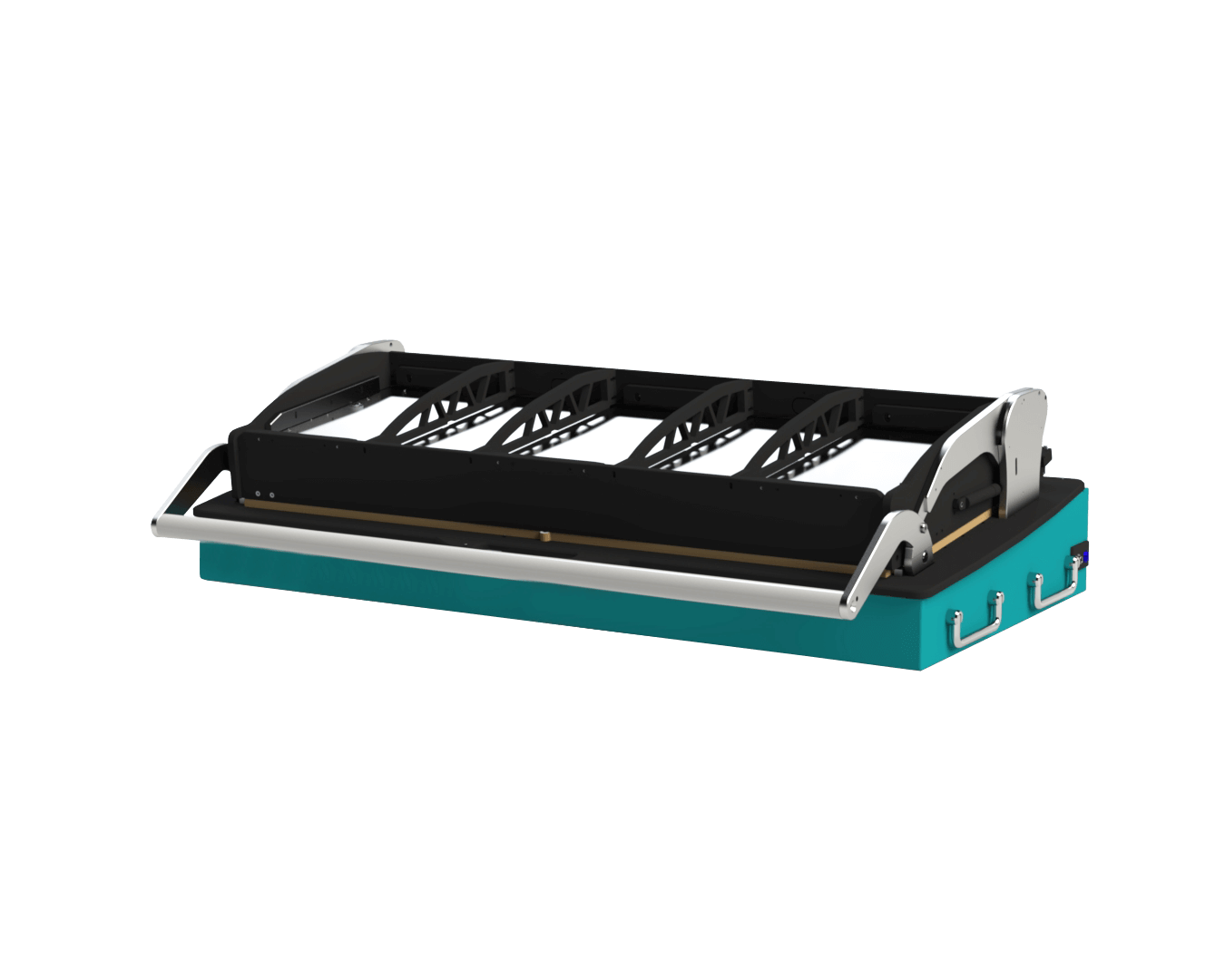

MMI-EV

MMI-EV (100232)

Moving plate: 890 x 330 mm

MMI-EV (100232)

Moving plate: 890 x 330 mm

Needle force: 1,200 N

Standard housing: E01-00132

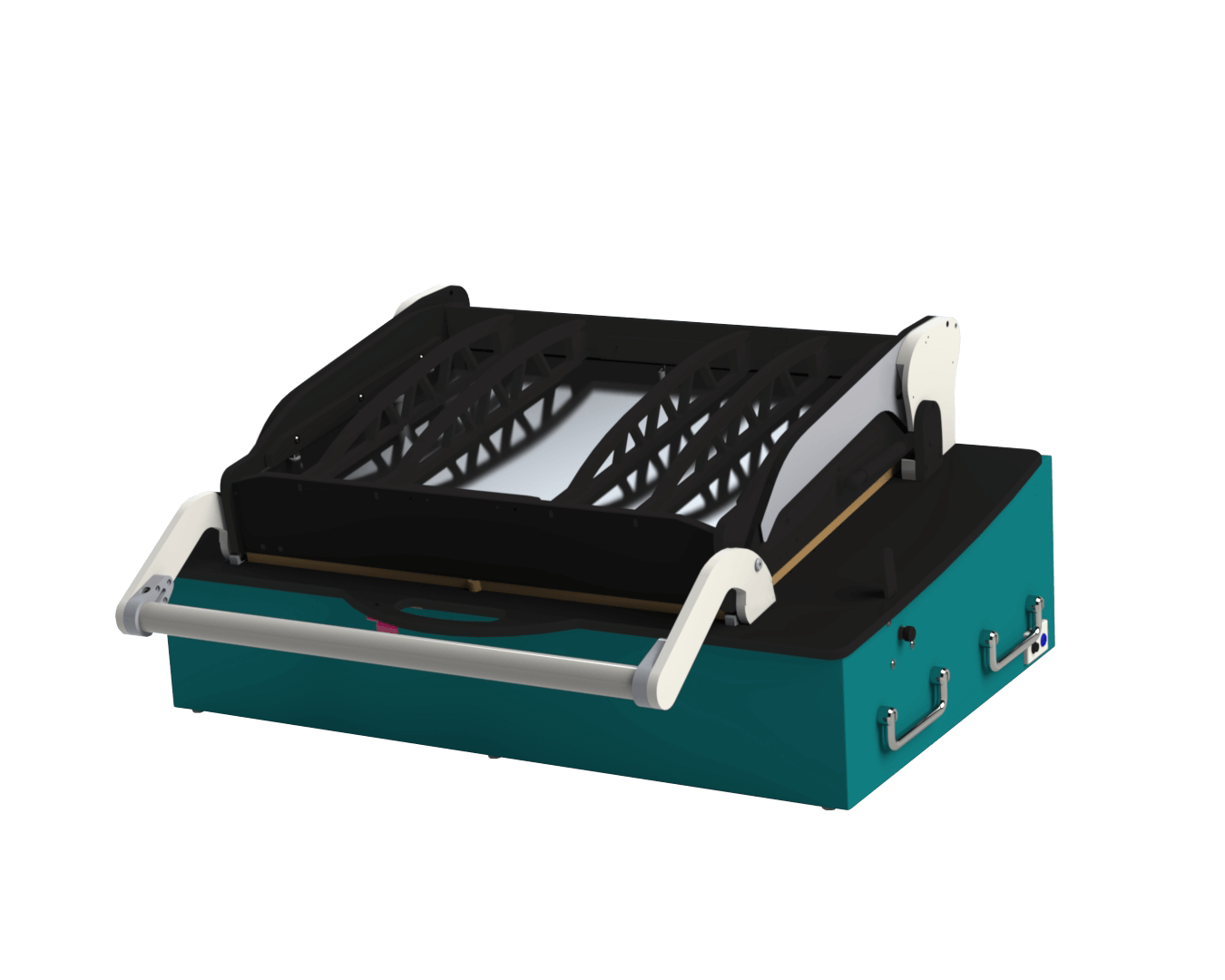

MMI-GV

MMI-GV (100687)

Moving plate: 545 x 400 mm

MMI-GV (100687)

Moving plate: 545 x 400 mm

Needle force: 1,200 N

Standard housing: E01-00132

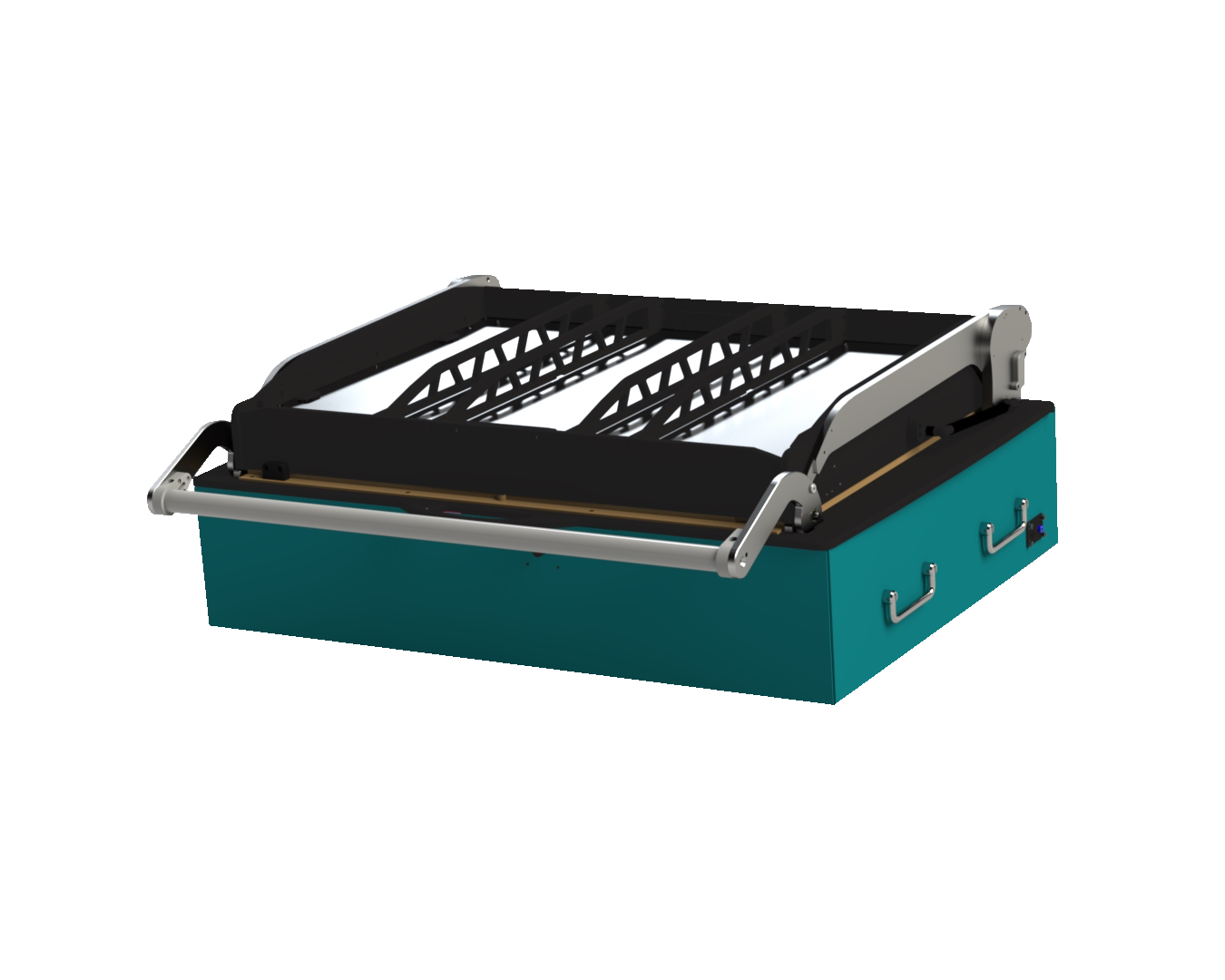

MMI-HV

MMI-HV (100182)

Moving plate: 650 x 500 mm

MMI-HV (100182)

Moving plate: 650 x 500 mm

Needle force: 1,200 N

Standard housing: E01-00217

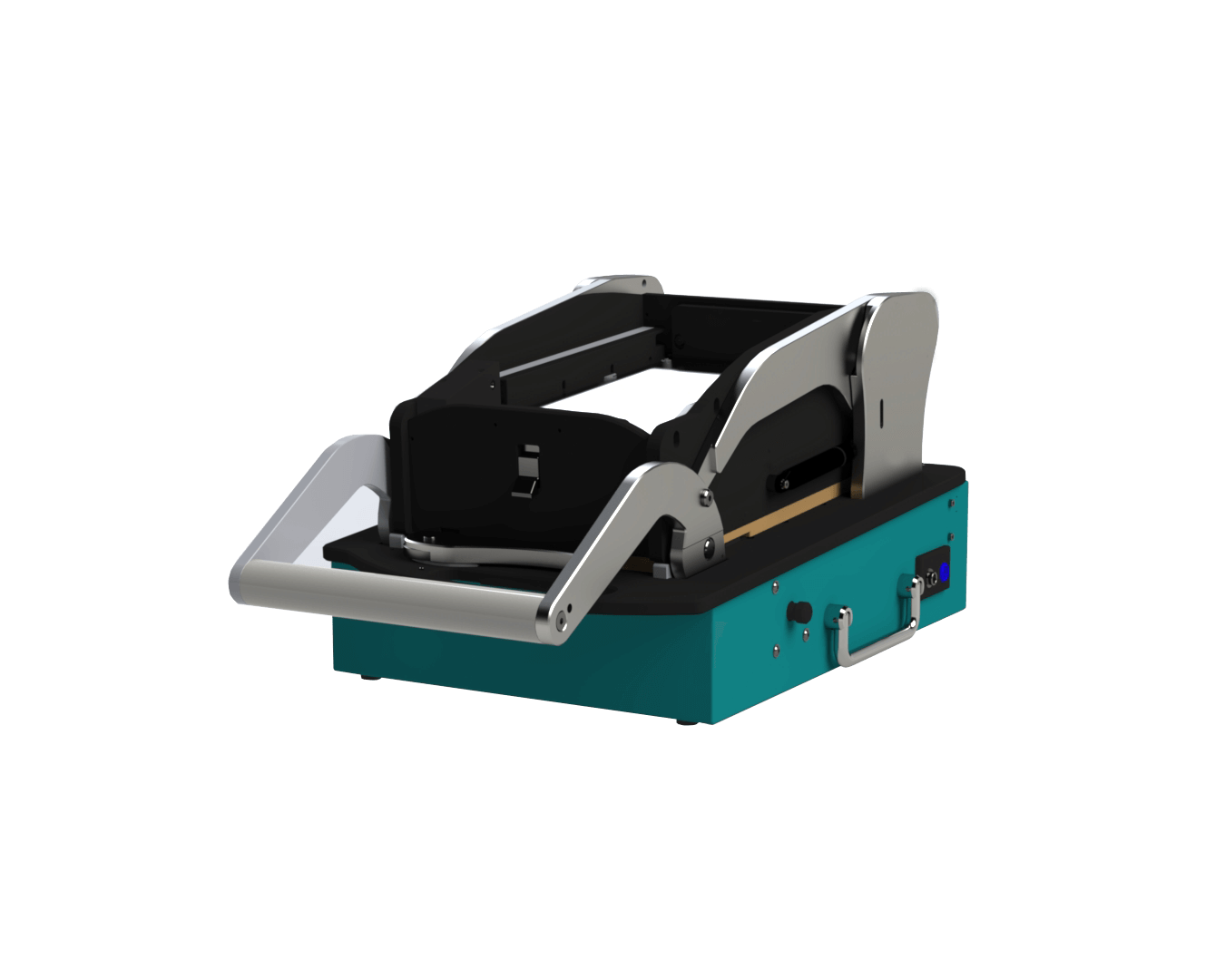

MMIWGT-A

MMIWGT-A (100247)

Moving plate: 185 x 310 mm

MMIWGT-A (100247)

Moving plate: 185 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00145

MMIWKT-A (100248)

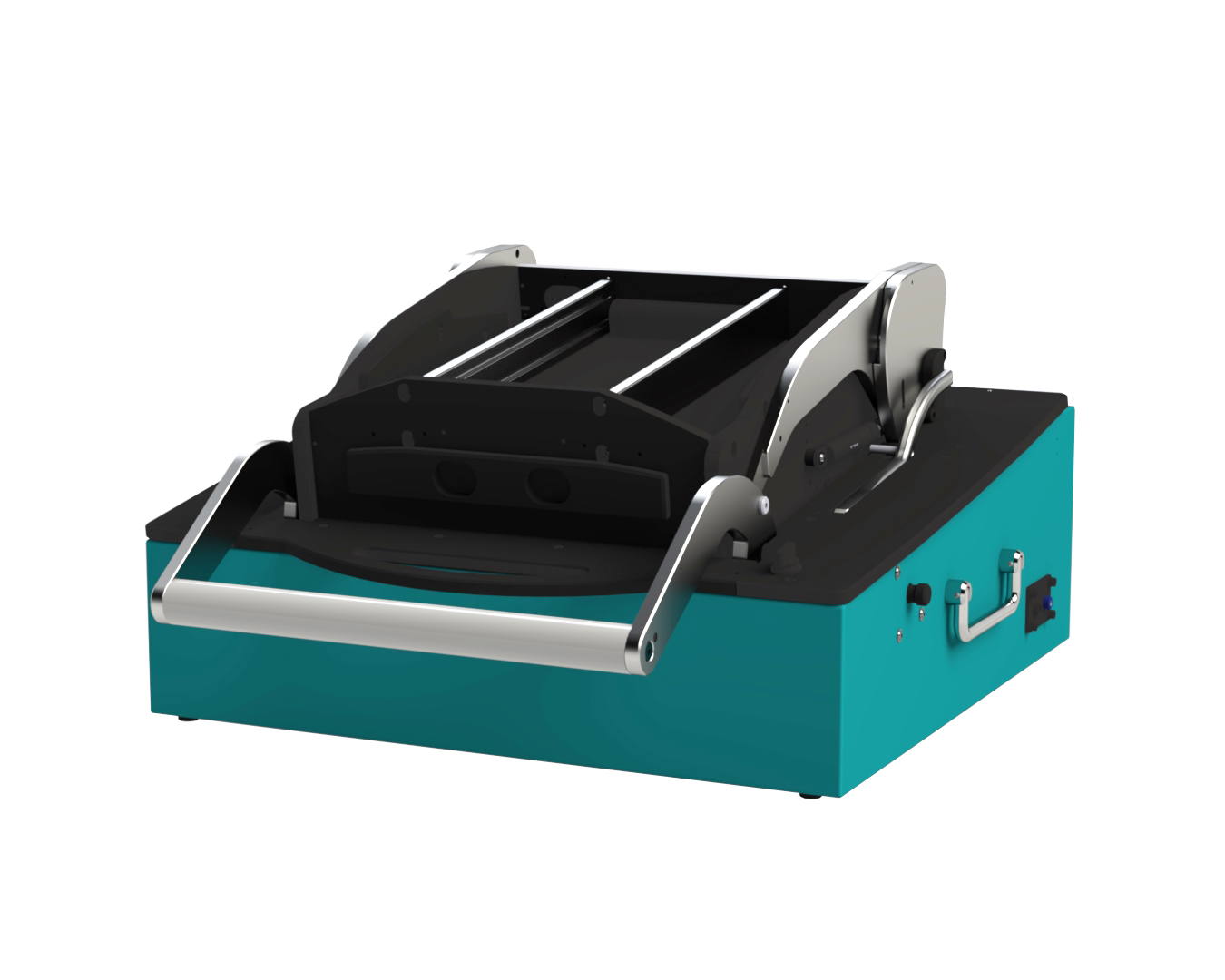

MMIWG2-A

MMIWG2-A (100276)

Moving plate: 294 x 310 mm

MMIWG2-A (100276)

Moving plate: 294 x 310 mm

Needle force: 1,600 N

Standard housing: E01-00124

High housing: E01-00123

MMIWK-A (100638)

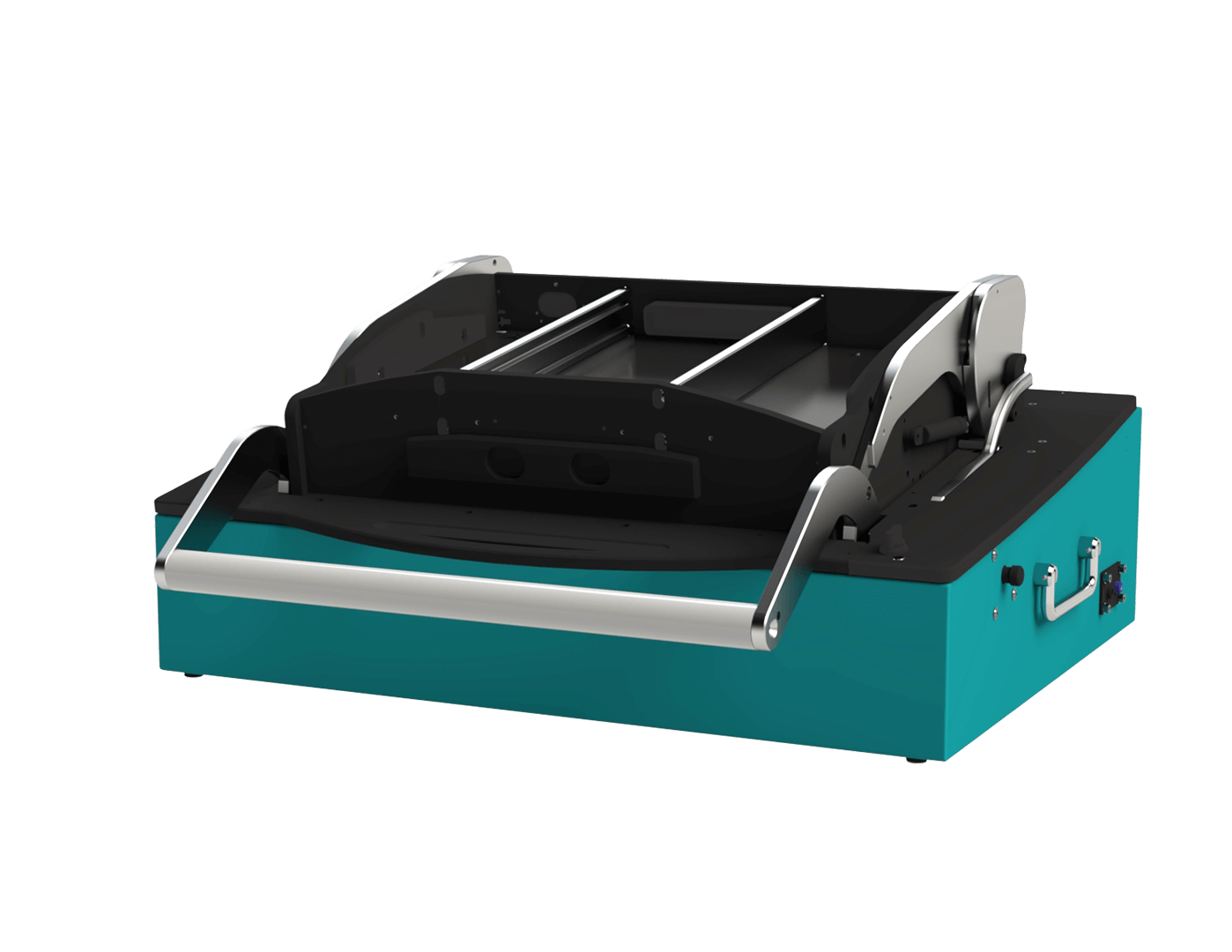

MMIWG2-B

MMIWG2-B (100277)

Moving plate: 424 x 310 mm

MMIWG2-B (100277)

Moving plate: 424 x 310 mm

Needle force: 1,600 N

Standard housing: E01-00125

High housing: E01-00133

MMIWK-B (100998)

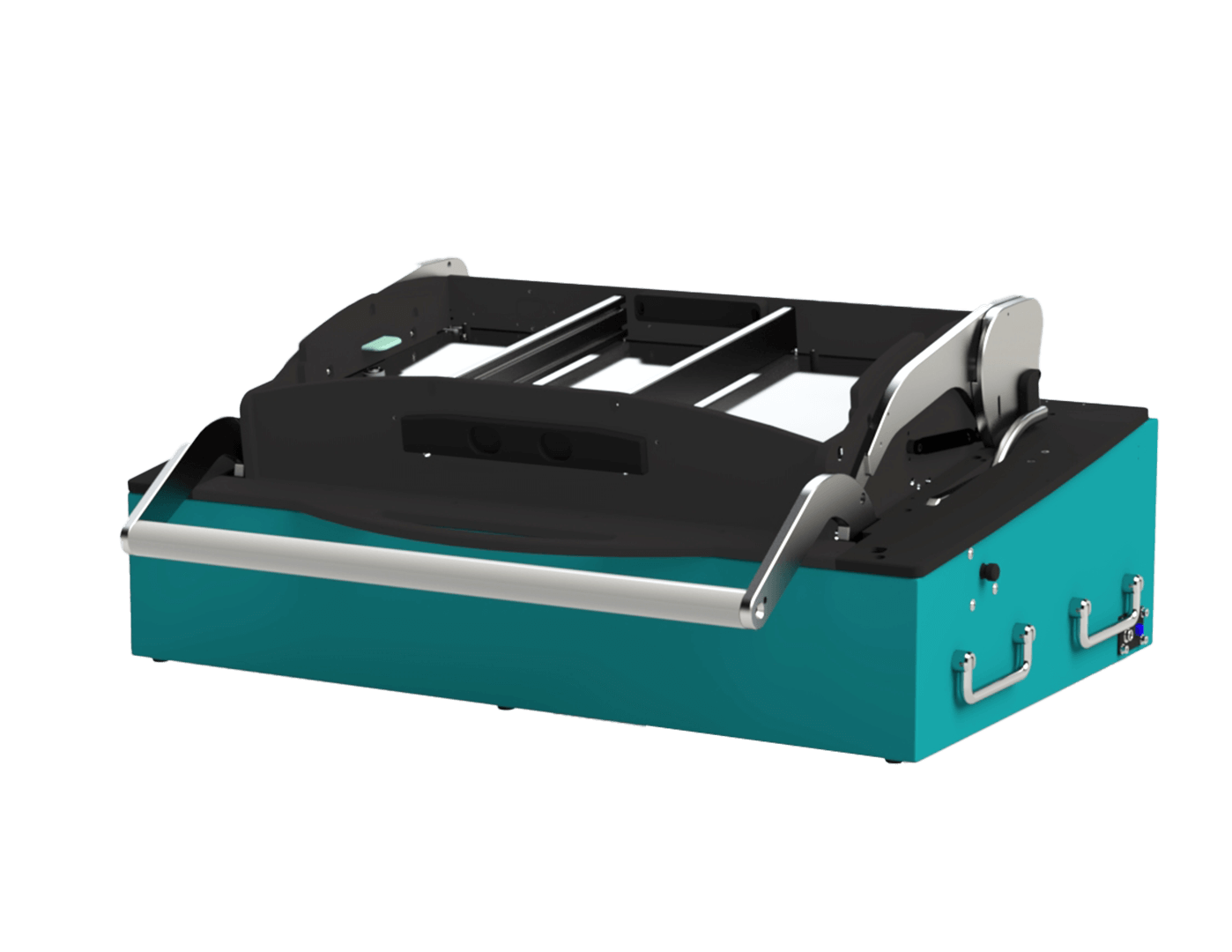

MMIWG2-C

MMIWG2-C (100278)

Moving plate: 554 x 310 mm

MMIWG2-C (100278)

Moving plate: 554 x 310 mm

Needle force: 1,600 N

Standard housing: E01-00132

MMIWK-C (100661)

MMIWKT-A

MMIWKT-A (100248)

Moving plate: 185 x 310 mm

MMIWKT-A (100248)

Moving plate: 185 x 310 mm

Suitable for basic device: MMIWGT-A (100247)

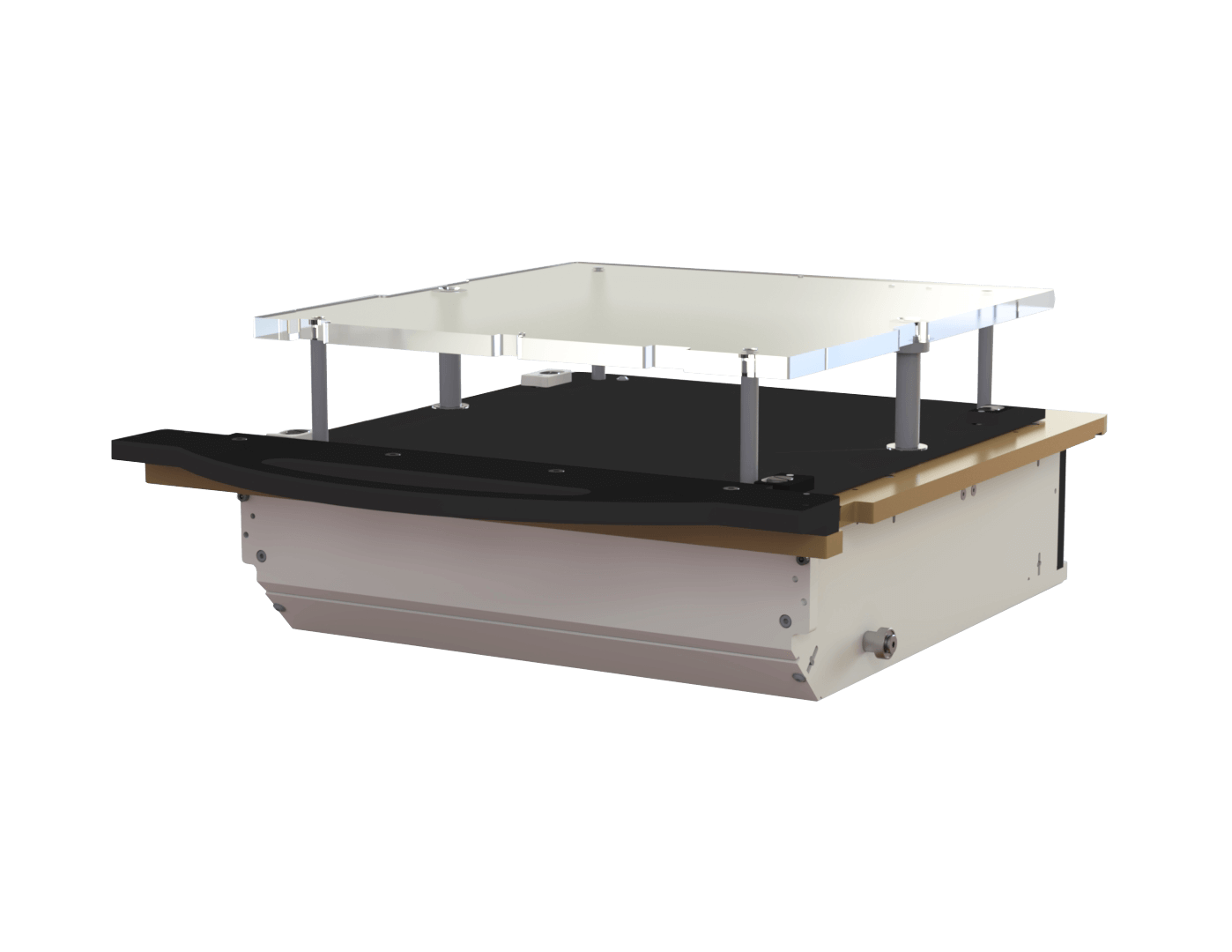

MMIWK-A

MMIWK-A (100638)

Moving plate: 294 x 310 mm

MMIWK-A (100638)

Moving plate: 294 x 310 mm

Suitable for basic device: MMIWG2-A (100276)

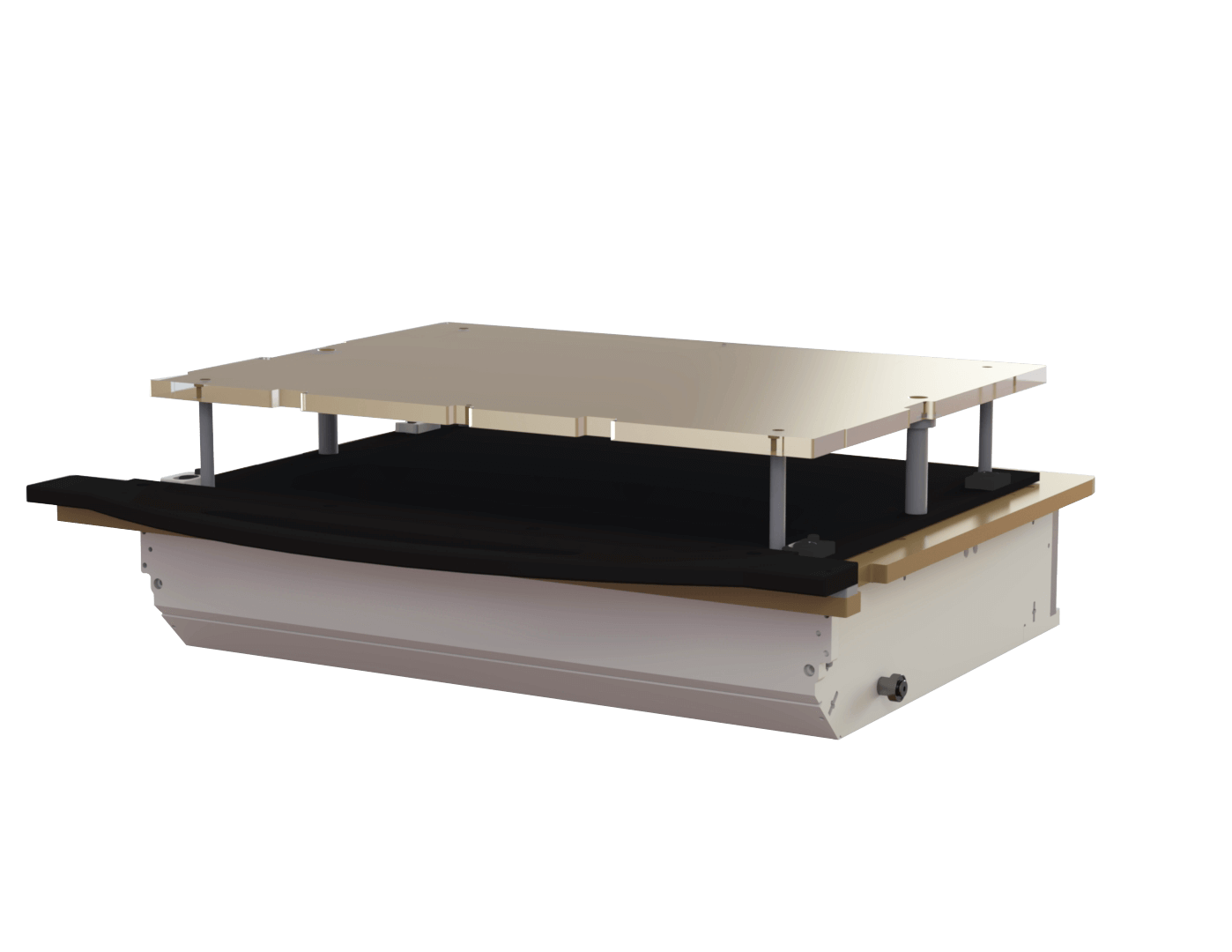

MMIWK-B

MMIWK-B (100998)

Moving plate: 424 x 310 mm

MMIWK-B (100998)

Moving plate: 424 x 310 mm

Suitable for basic device: MMIWG2-B (100277)

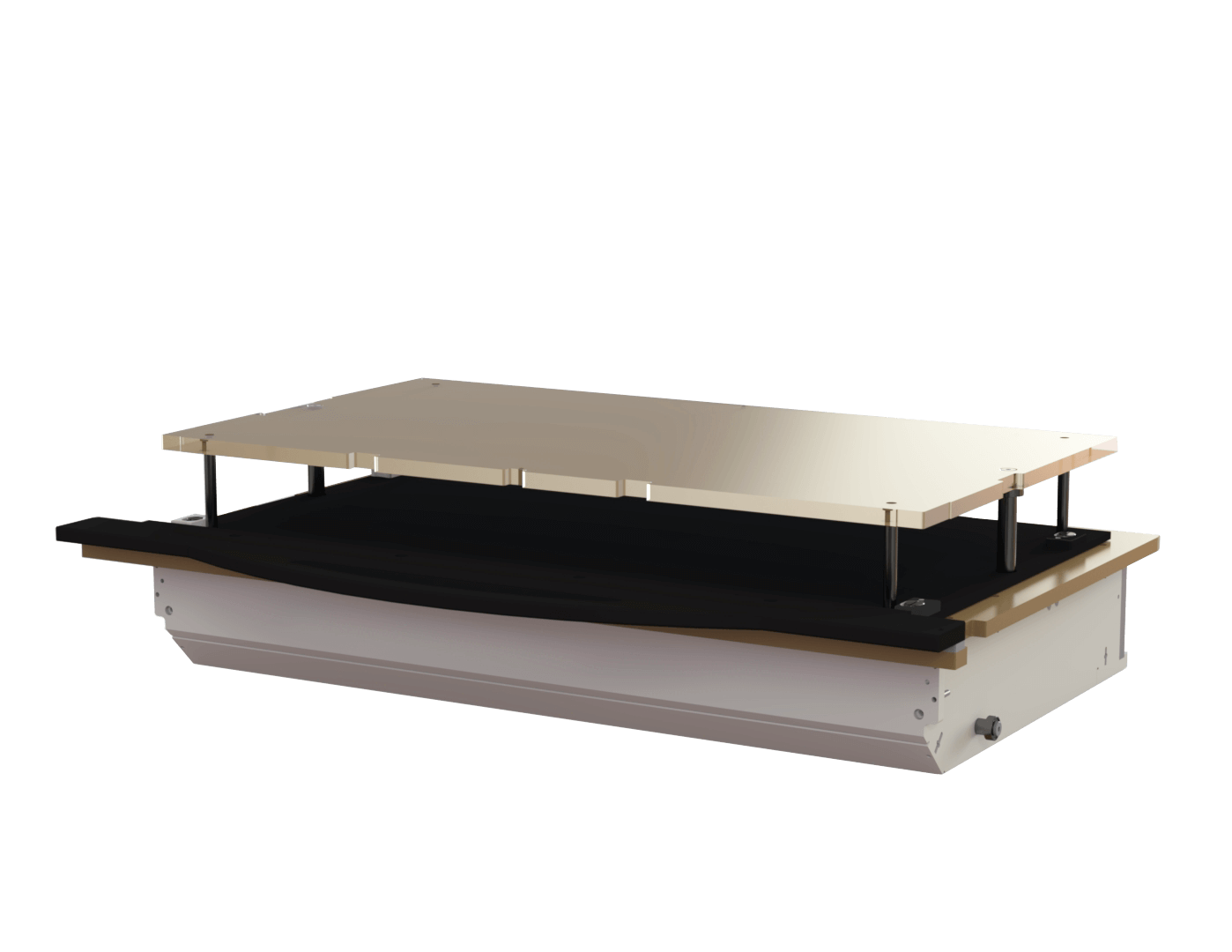

MMIWK-C

MMIWK-C (100661)

Moving plate: 554 x 310 mm

MMIWK-C (100661)

Moving plate: 554 x 310 mm

Suitable for basic device: MMIWG2-C (100278)

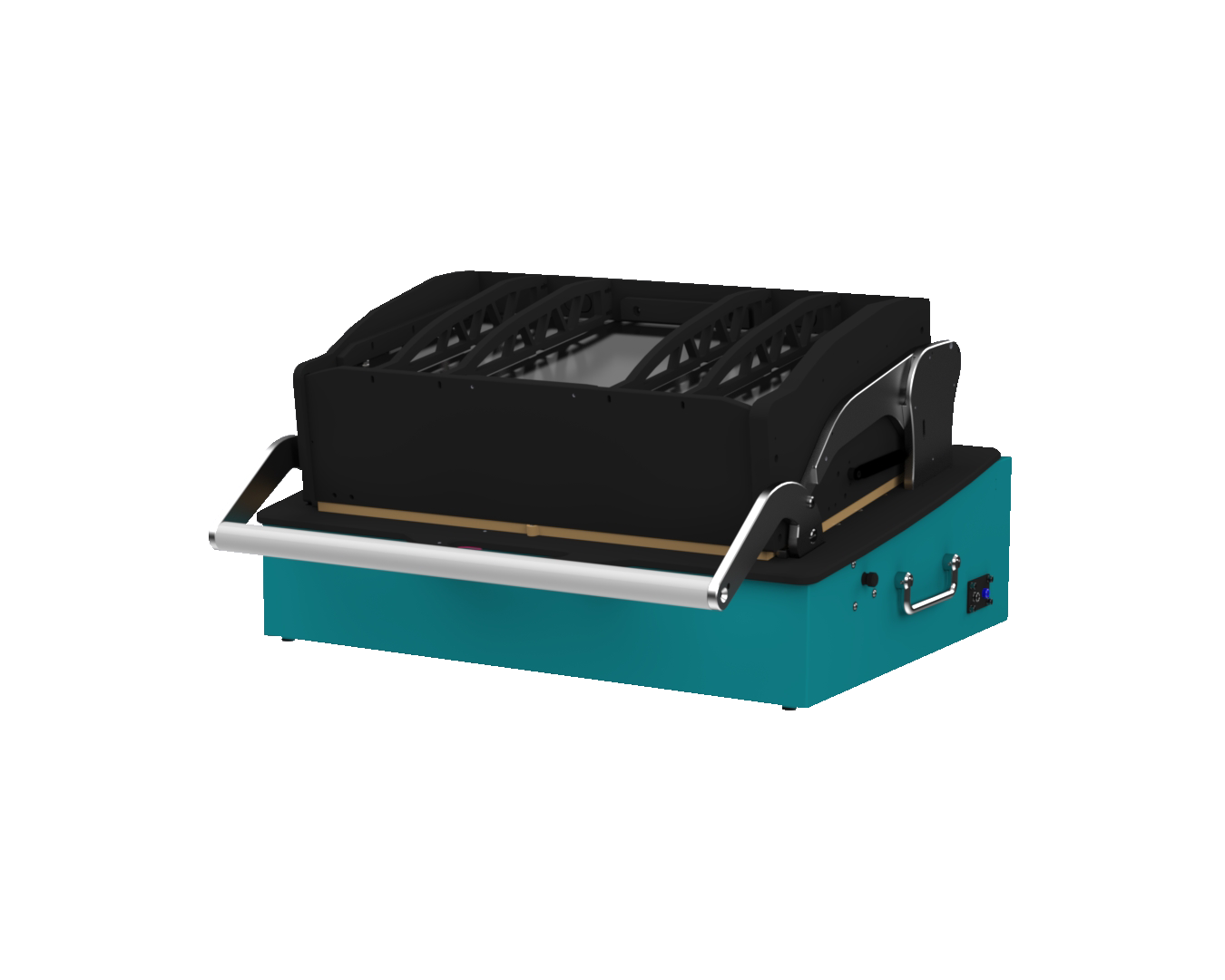

MMI-DVH

MMI-DVH (100360)

Moving plate: 530 x 330 mm

MMI-DVH (100360)

Moving plate: 530 x 330 mm

Needle force: 1,200 N

Standard housing: E01-00125

High housing: E01-00133

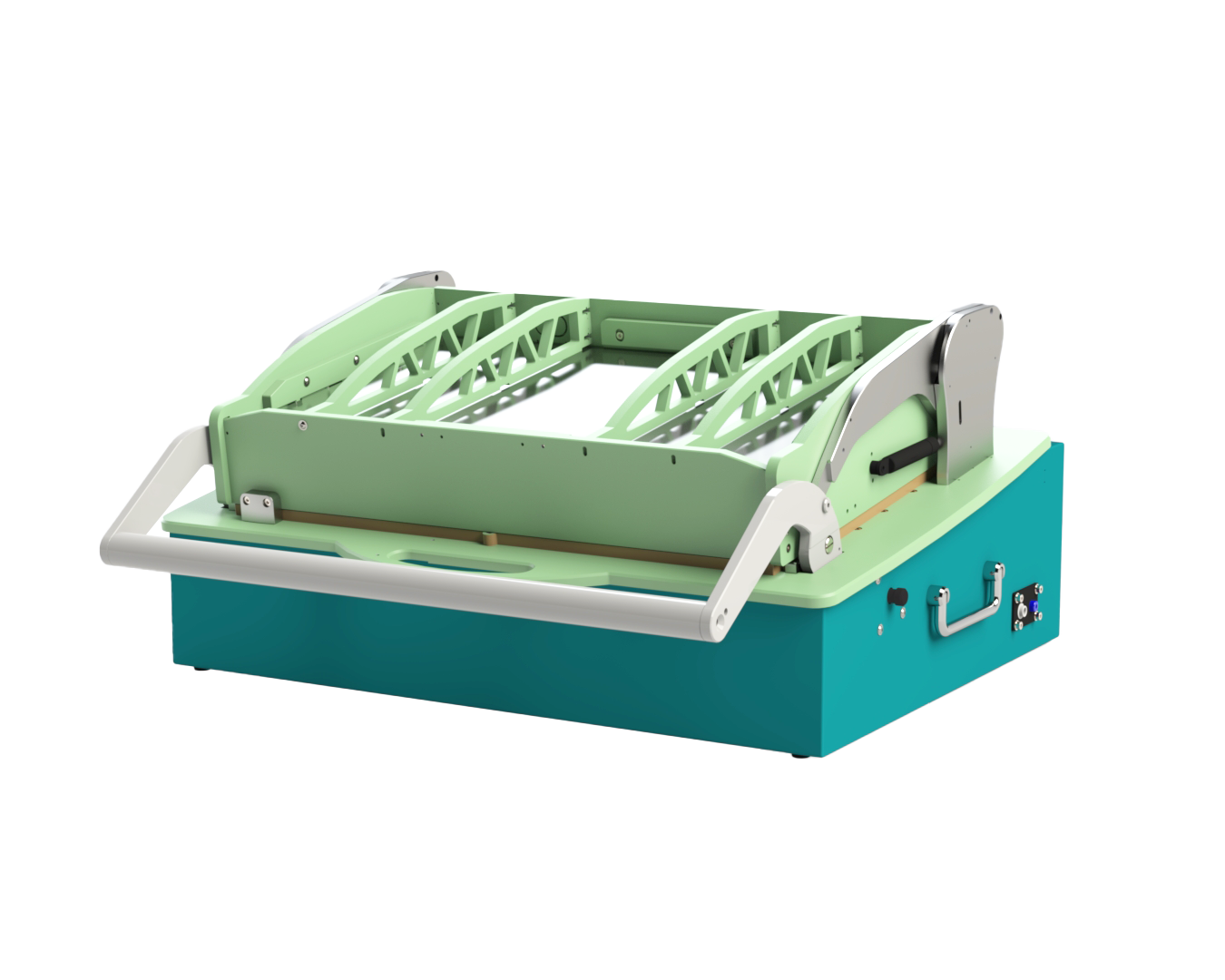

MMI-DVI

MMI-DVI (100290)

Moving plate: 530 x 330 mm

MMI-DVI (100290)

Moving plate: 530 x 330 mm

Needle force: 1,200 N

Standard housing: E01-00125

High housing: E01-00133

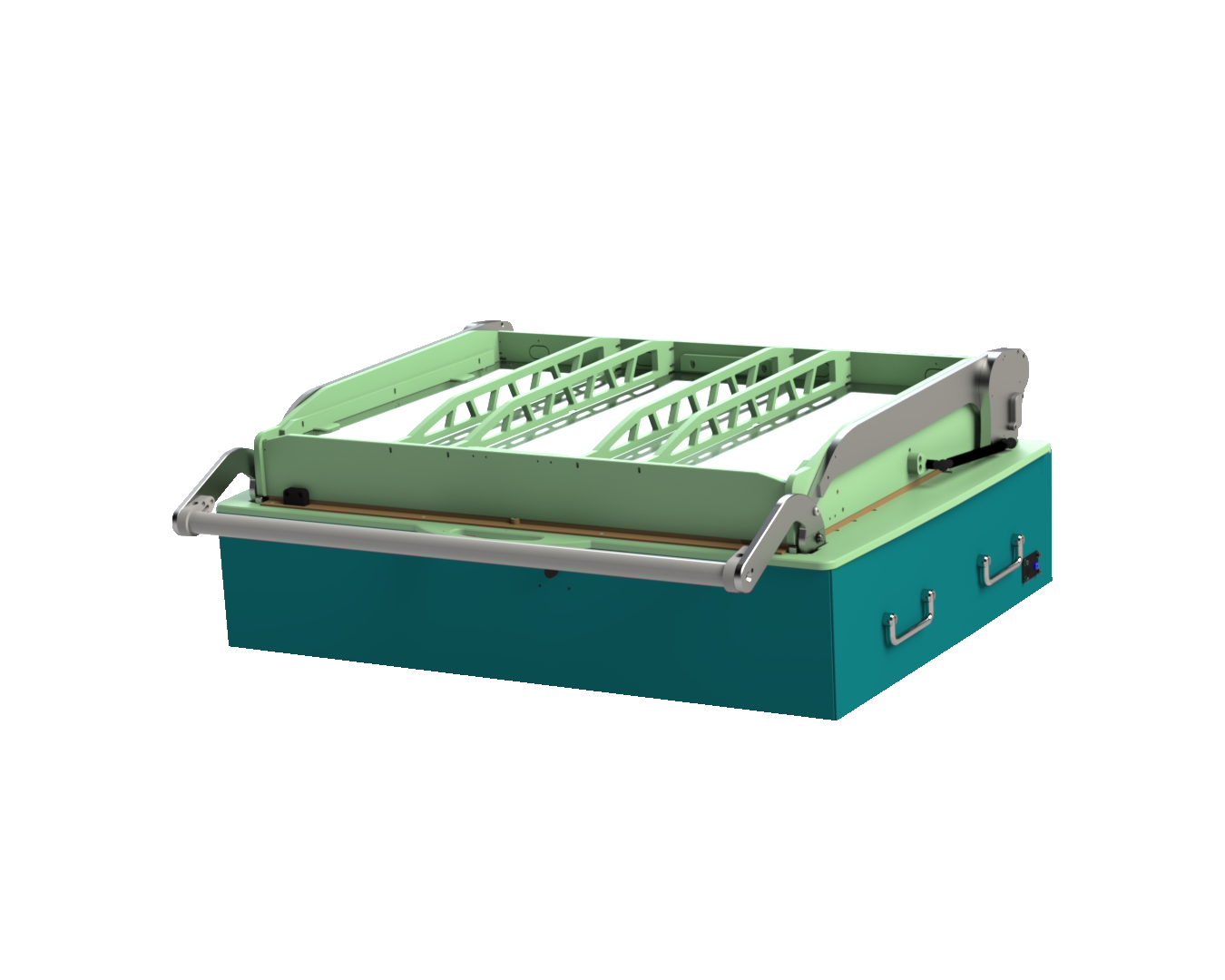

MMI-HVI

MMI-HVI (100183)

Moving plate: 650 x 500 mm

MMI-HVI (100183)

Moving plate: 650 x 500 mm

Needle force: 1,200 N

Standard housing: E01-00217

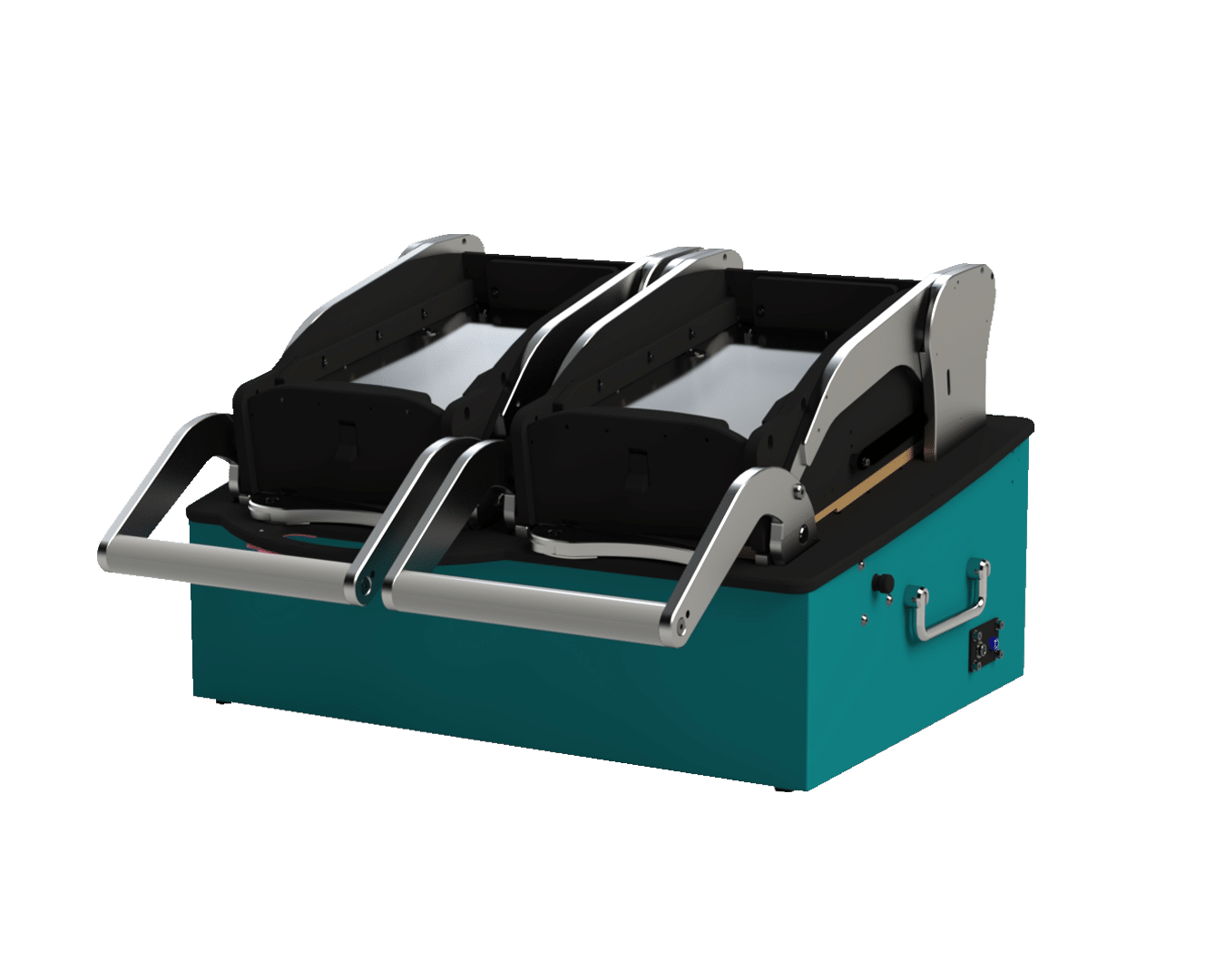

MMIWGT-A-DO

MMIWGT-A-DO (100201)

Moving plate: 2x 185 x 310 mm

MMIWGT-A-DO (100201)

Moving plate: 2x 185 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00118

MMIWKT-A (2x 100248)

MMIHF series

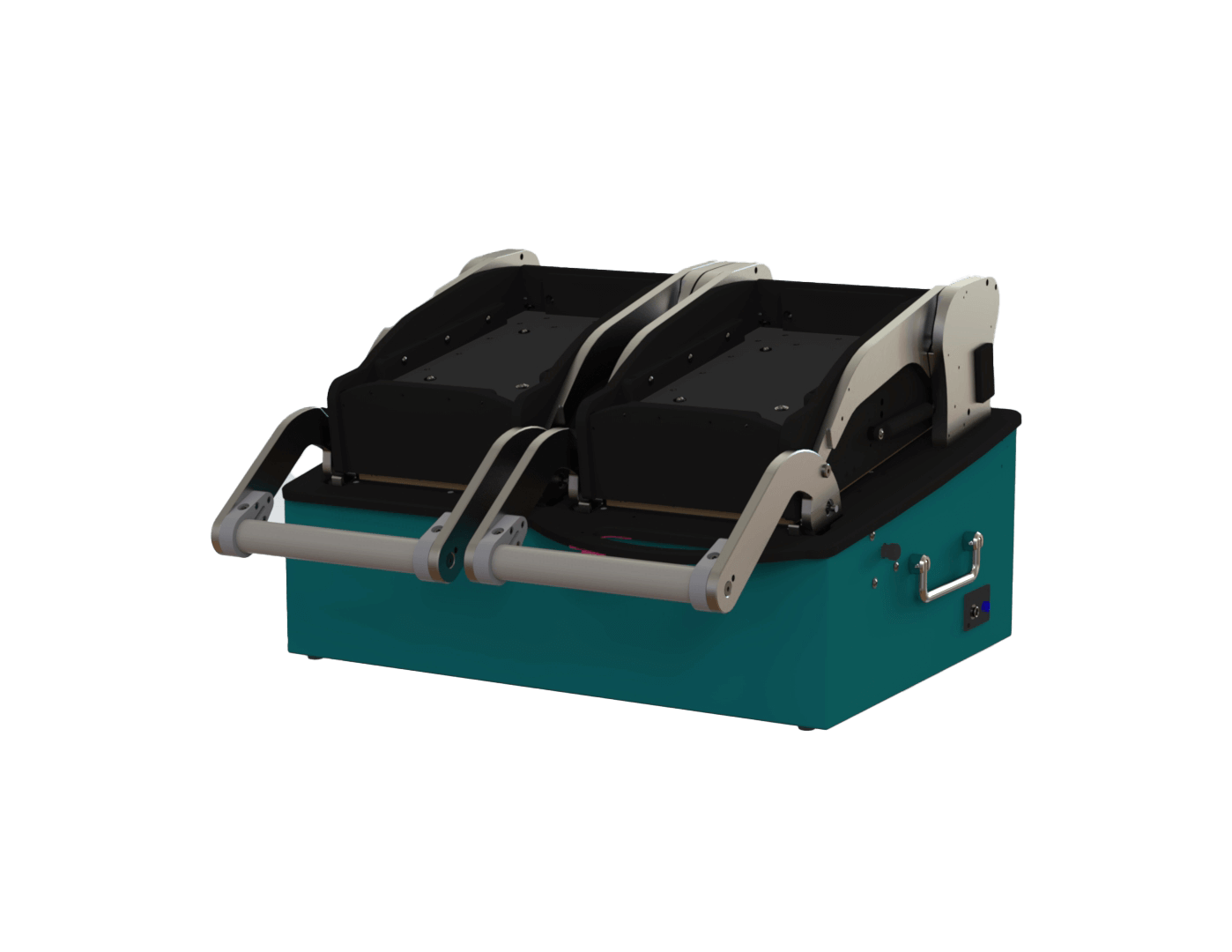

MMIHF-A-DO-1

MMIHF-A-DO-1 (100229)

Moving plate: 2x 122 x 250 mm

MMIHF-A-DO-1 (100229)

Moving plate: 2x 122 x 250 mm

Standard housing: E01-00118

1 bonnet | 2 test chambers

MMIHF-A-DO-2

MMIHF-A-DO-2 (100230)

Moving plate: 2x 122 x 250 mm

MMIHF-A-DO-2 (100230)

Moving plate: 2x 122 x 250 mm

Standard housing: E01-00118

2 bonnets | 2 test chambers

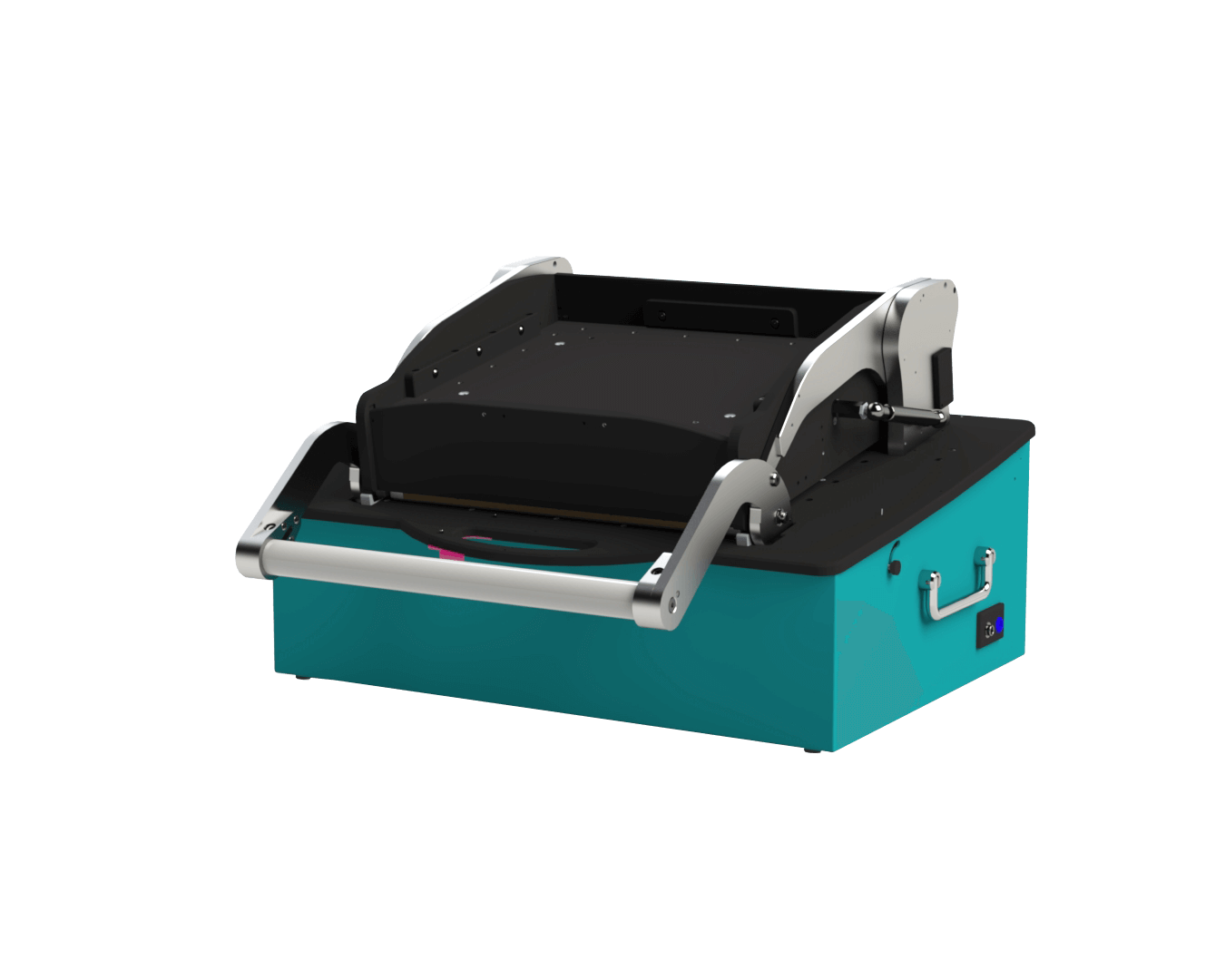

MMIHF-B

MMIHF-B (100223)

Moving plate: 290 x 250 mm

MMIHF-B (100223)

Moving plate: 290 x 250 mm

Standard housing: E01-00118

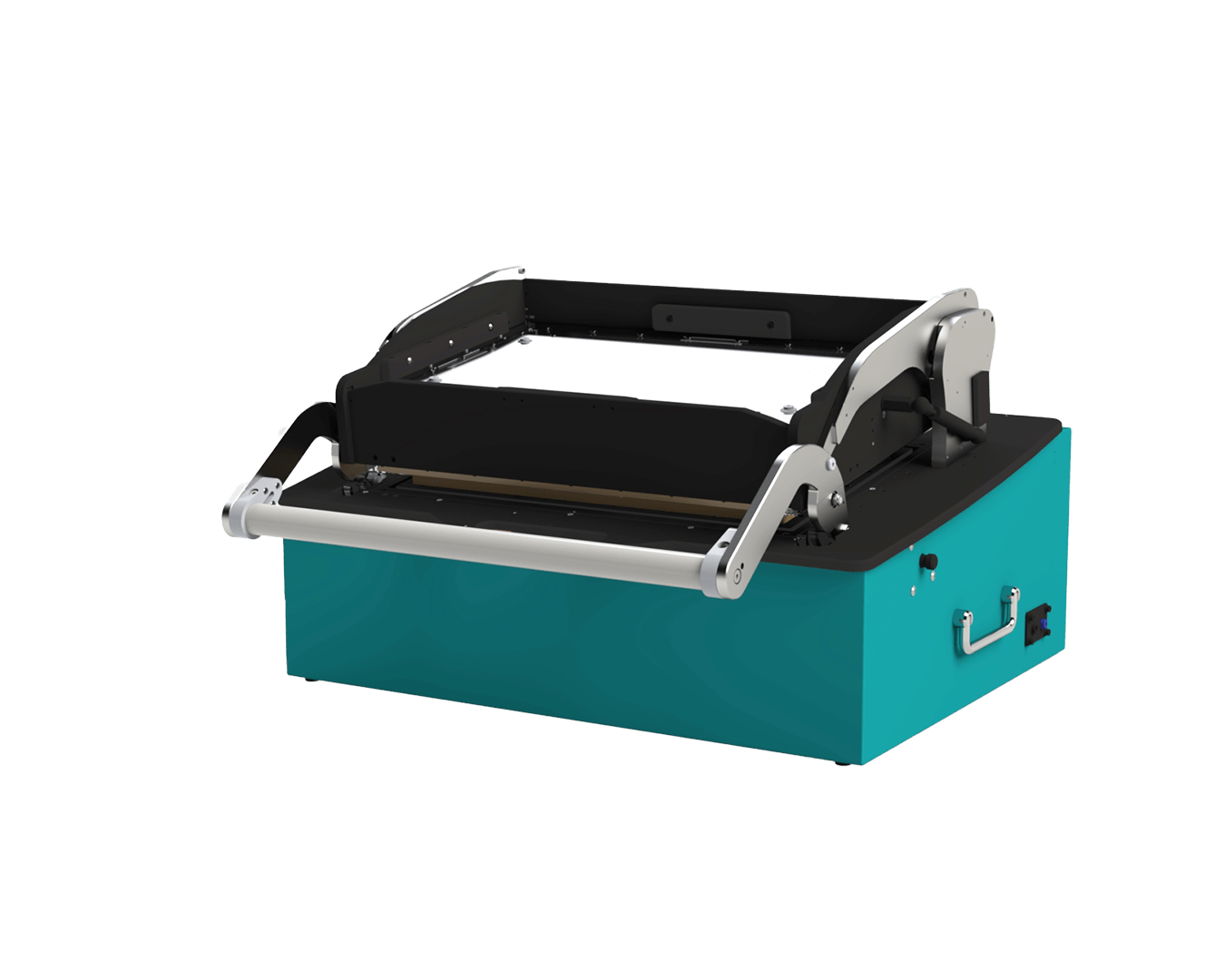

MMIHF-C

MMIHF-C (100240)

Moving plate: 420 x 250 mm

MMIHF-C (100240)

Moving plate: 420 x 250 mm

Standard housing: E01-00133

MMIHFWG-B

MMIHFWG-B (100245)

Moving plate: 290 x 250 mm

MMIHFWG-B (100245)

Moving plate: 290 x 250 mm

Standard housing: E01-00118

MMIHFWK-B (100264)

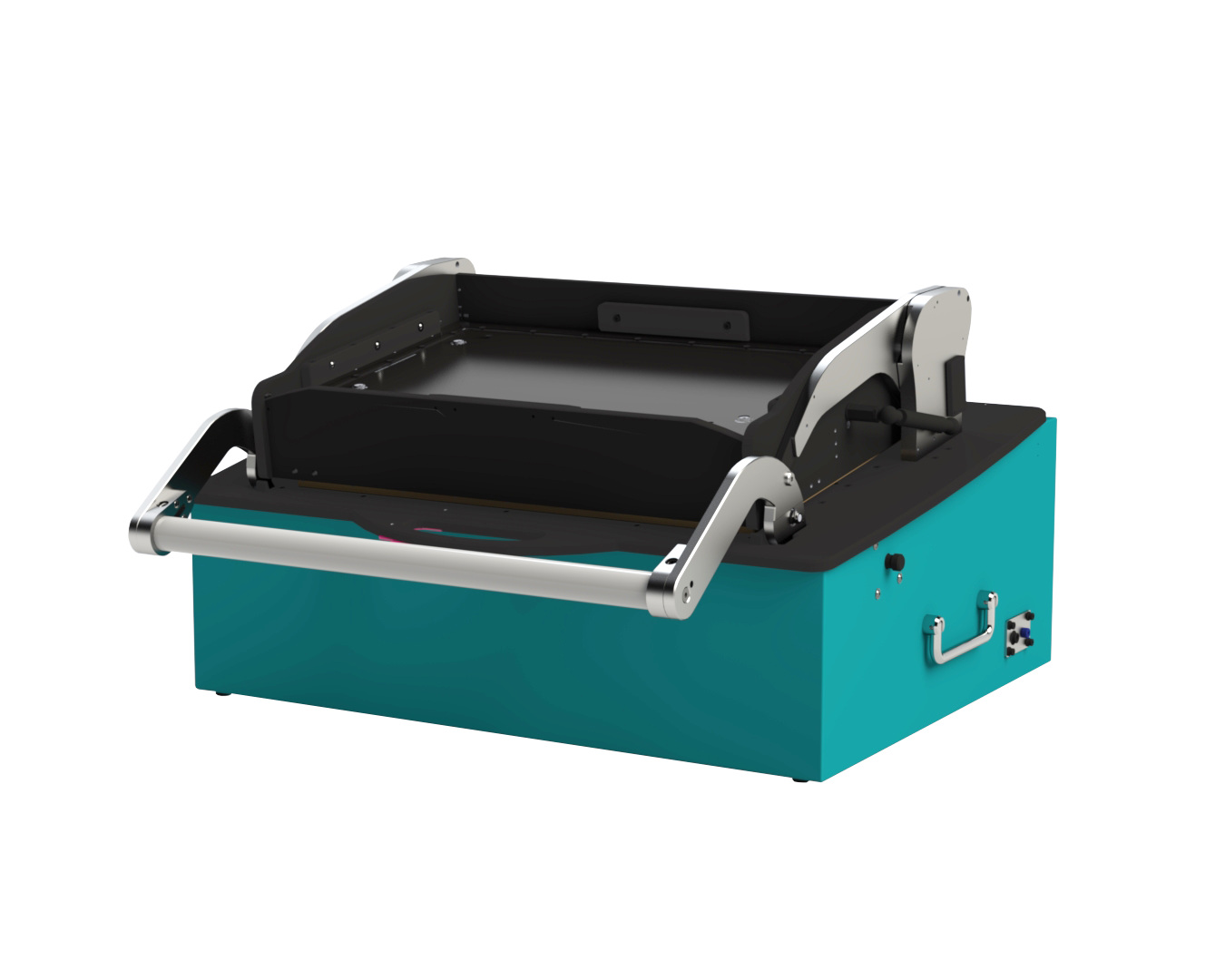

MMIHFWG-C

MMIHFWG-C (100263)

Moving plate: 420 x 250 mm

MMIHFWG-C (100263)

Moving plate: 420 x 250 mm

Standard housing: E01-00133

MMIHFWK-C (100265)

MMIHFWK-B

MMIHFWK-B (100264)

Moving plate: 290 x 250 mm

MMIHFWK-B (100264)

Moving plate: 290 x 250 mm

Suitable for basic device: MMIHFWG-B (100245)

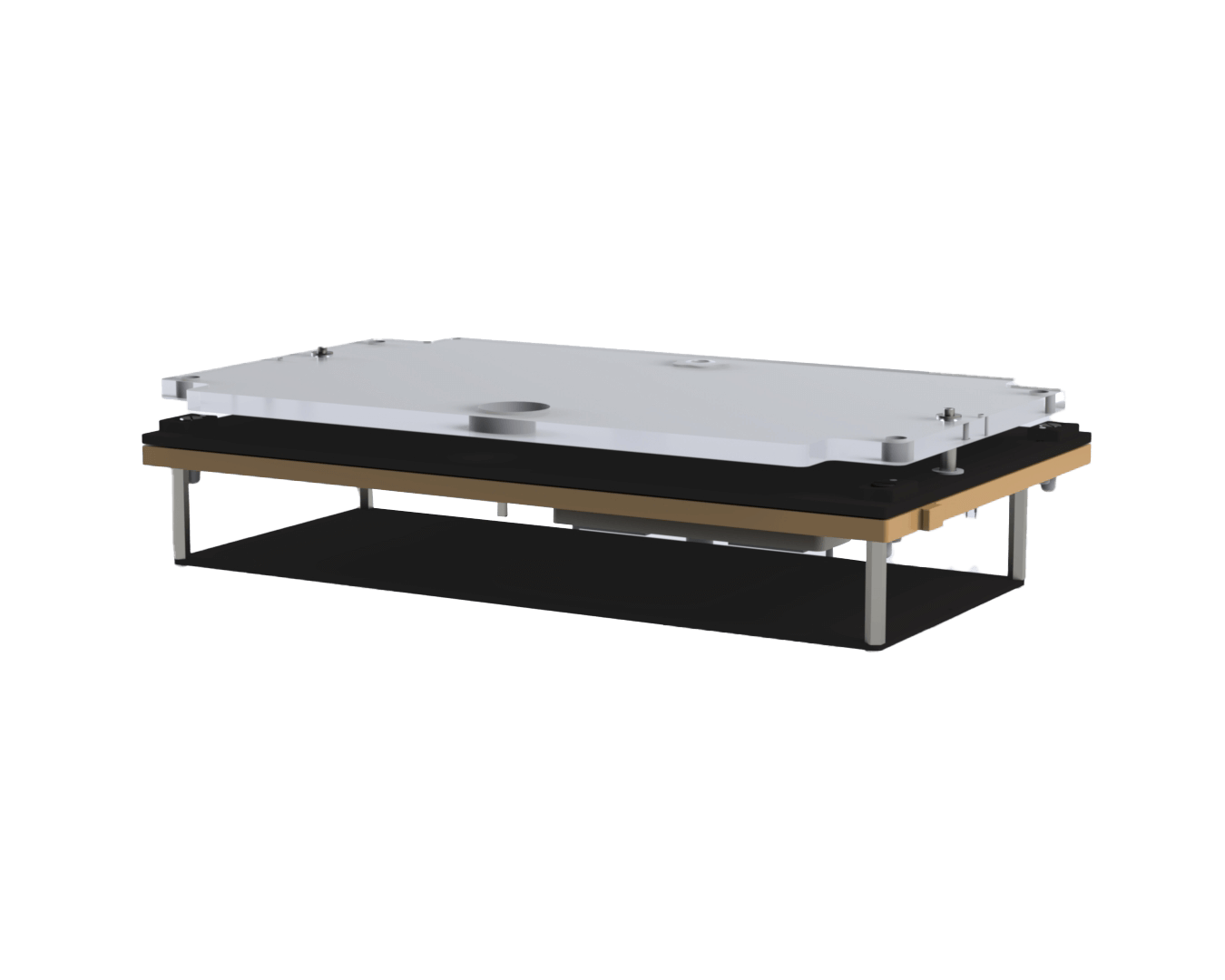

MMIHFWK-C

MMIHFWK-C (100265)

Moving plate: 420 x 250 mm

MMIHFWK-C (100265)

Moving plate: 420 x 250 mm

Suitable for basic device: MMIHFWG-C (100263)

LHS2 series

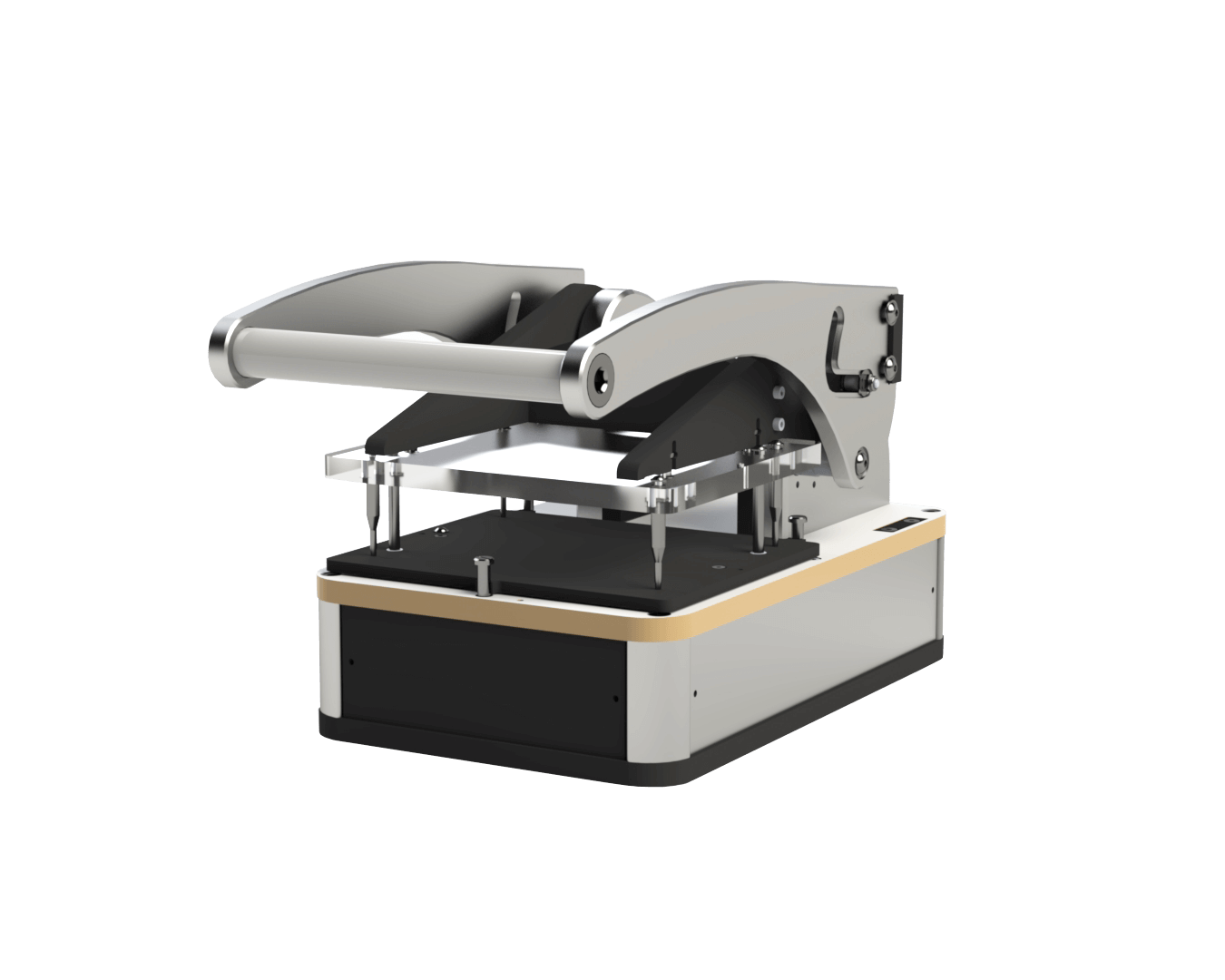

LHS2-A

LHS2-A (100707)

Moving plate: 130 x 100 mm

LHS2-A (100707)

Moving plate: 130 x 100 mm

Needle force: 100 N

Standard height

Special interior height 80 mm

LHS2-D

LHS2-D (100828)

Moving plate: 170 x 140 mm

LHS2-D (100828)

Moving plate: 170 x 140 mm

Needle force: 200 N

Standard height

Special interior height 80 mm

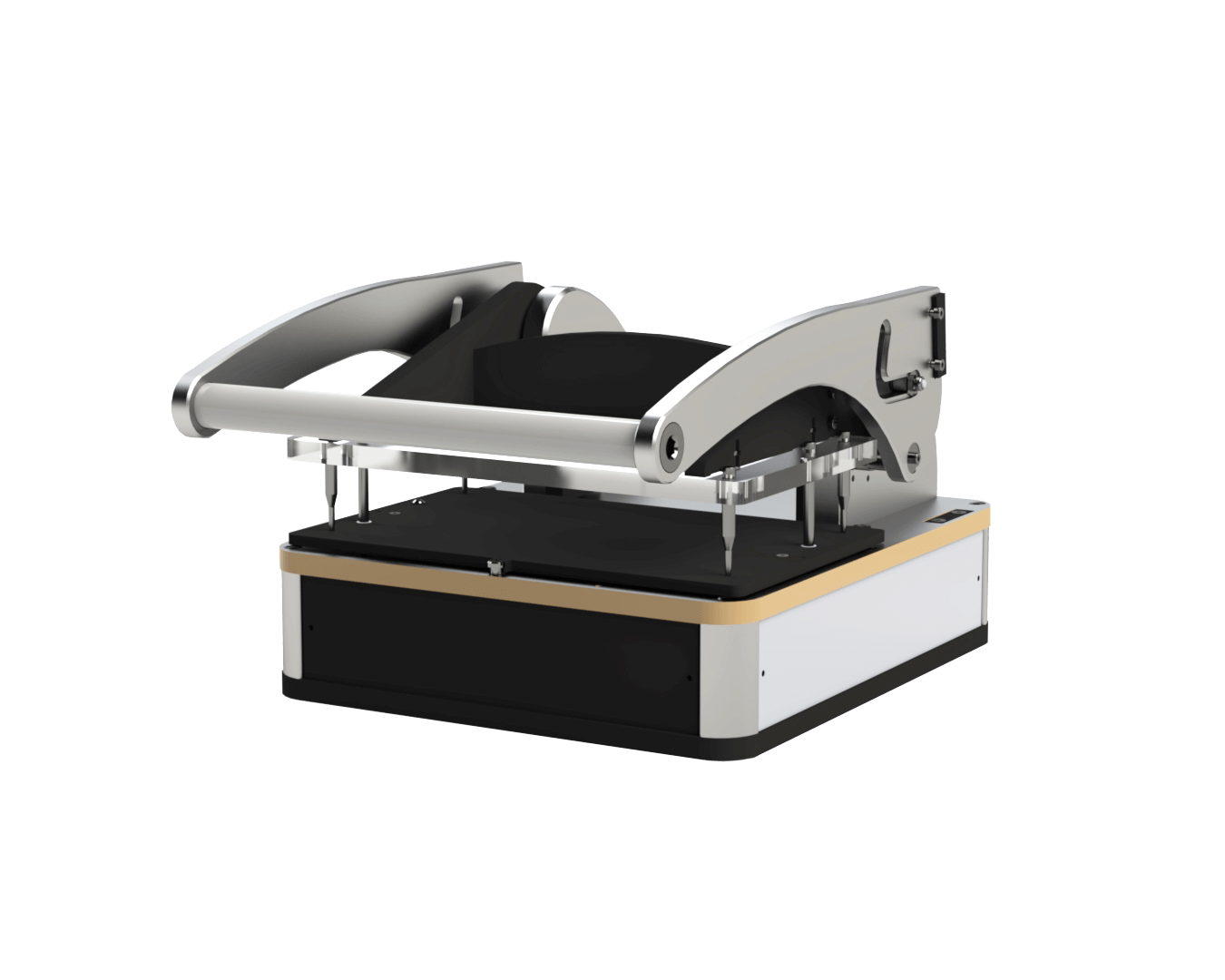

LHS2-F

LHS2-F (100961)

Moving plate: 240 x 150 mm

LHS2-F (100961)

Moving plate: 240 x 150 mm

Needle force: 200 N

Standard height

Special interior height 80 mm

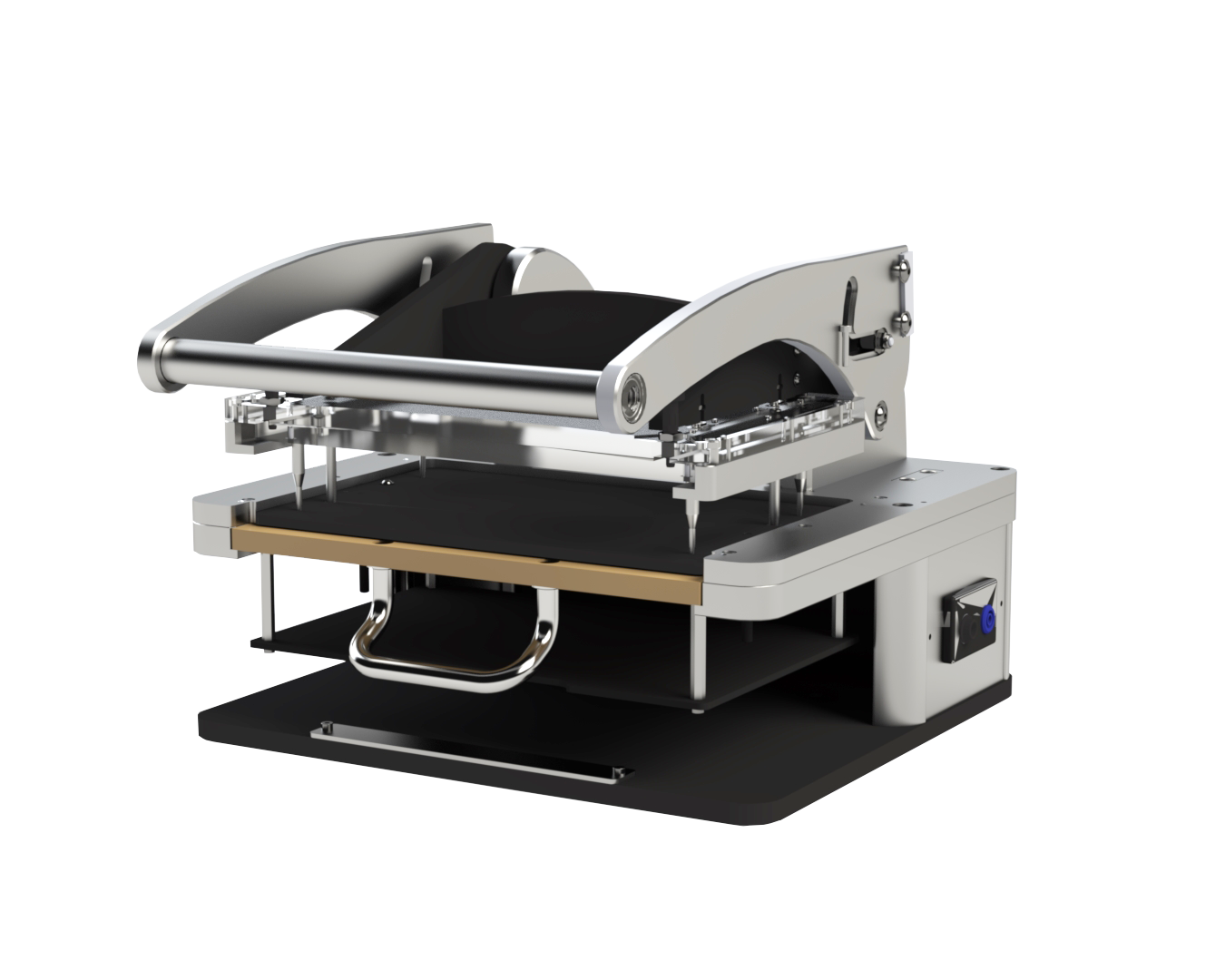

LHS2WG-F

LHS2WG-F (100329)

Moving plate: 240 x 150mm

LHS2WG-F (100329)

Moving plate: 240 x 150mm

Needle force: 200 N

Standard height

Special interior height 80 mm

LHS2WK-F

LHS2WK-F (100330)

Moving plate: 240 x 150 mm

LHS2WK-F (100330)

Moving plate: 240 x 150 mm

Suitable for basic device: LHS2WG-F (100329)

ME2 series

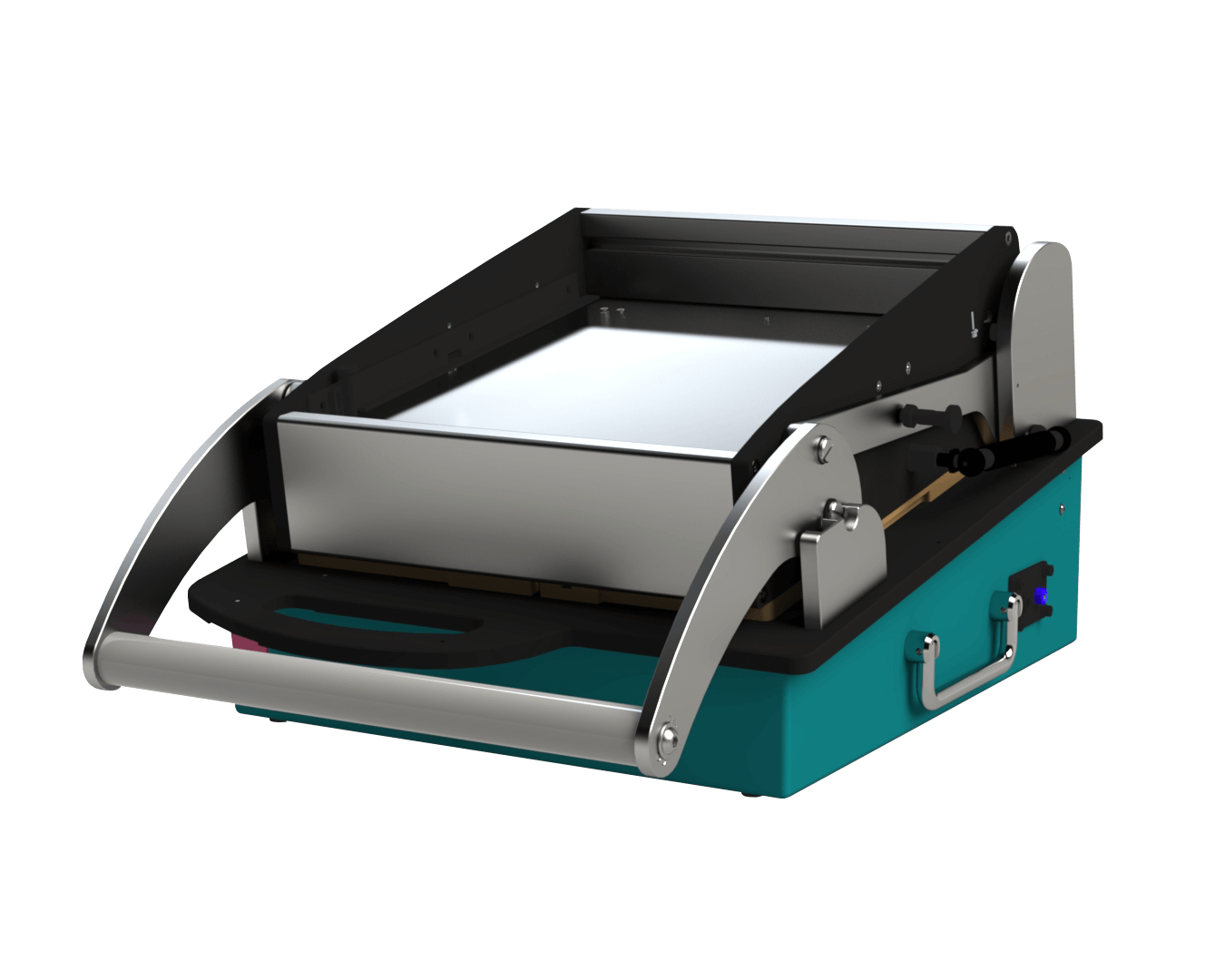

ME2-B

ME2-B (101501)

Moving plate: 275 x 304 mm

ME2-B (101501)

Moving plate: 275 x 304 mm

Needle force: 600 N

Standard housing: E01-00001

High housing: E01-00012

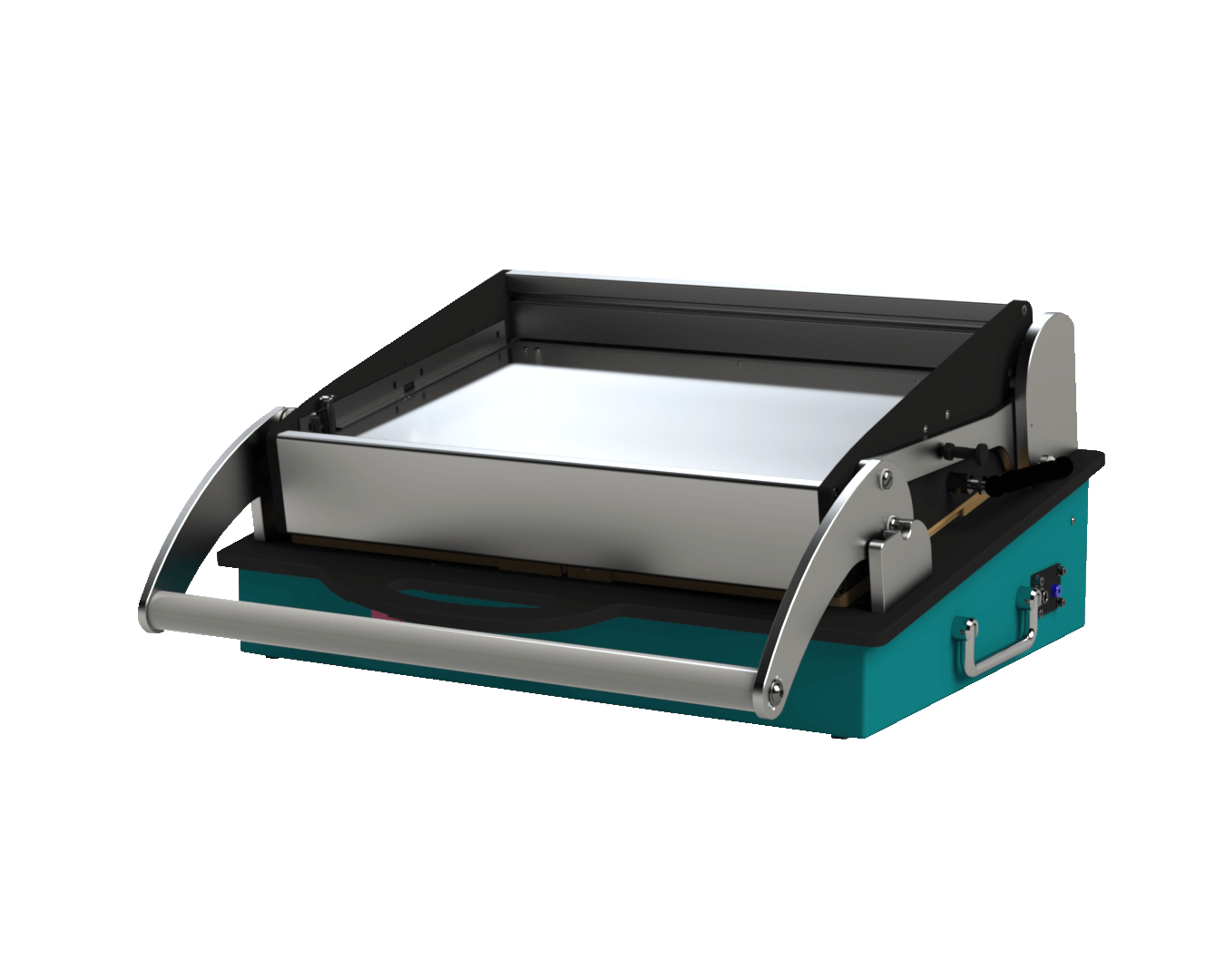

ME2-C

ME2-C (101509)

Moving plate: 445 x 304 mm

ME2-C (101509)

Moving plate: 445 x 304 mm

Needle force: 600 N

Standard housing: E01-00002

High housing: E01-00025

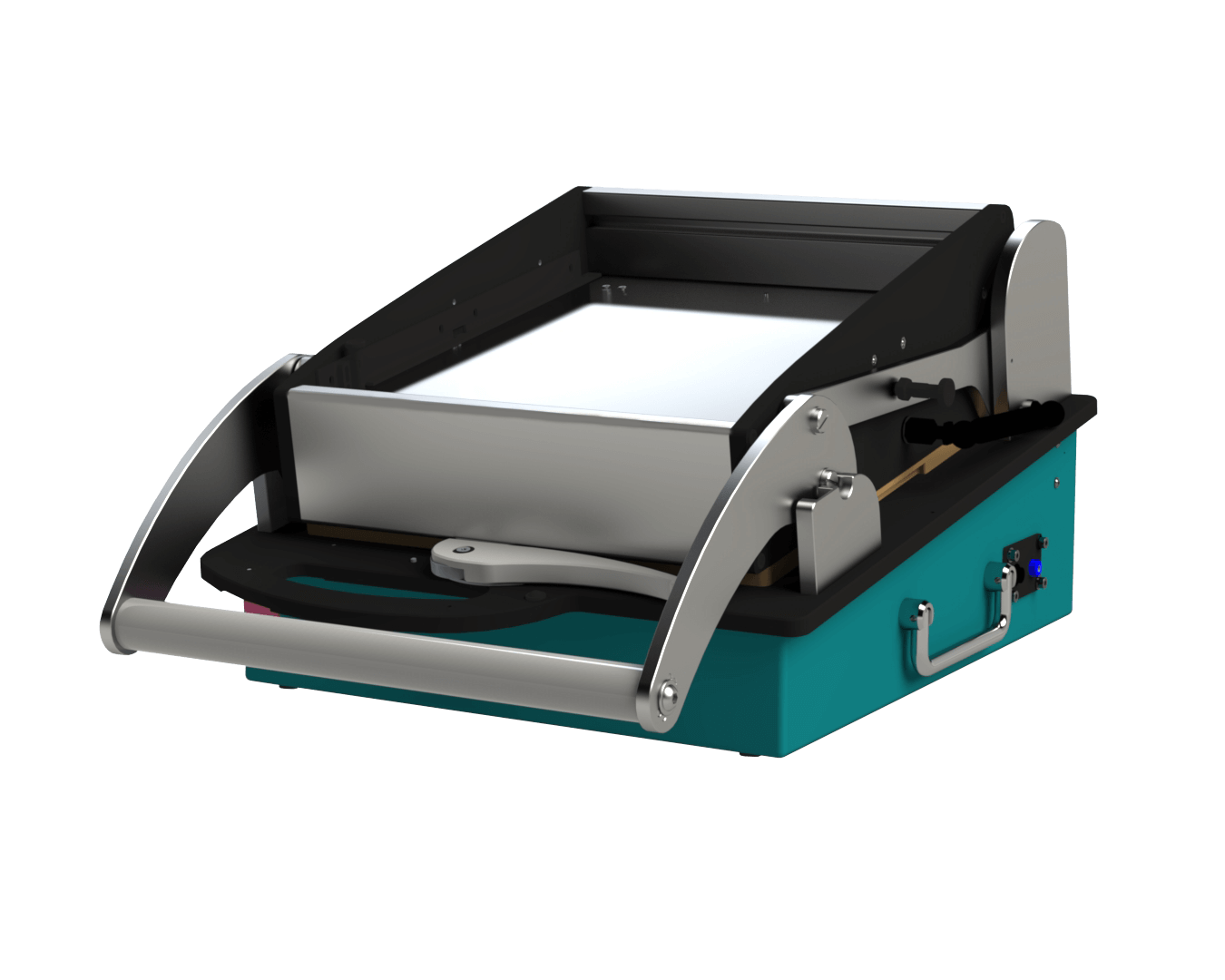

ME2WG-B

ME2WG-B (101510)

Moving plate: 275 x 304 mm

ME2WG-B (101510)

Moving plate: 275 x 304 mm

Needle force: 600 N

Standard housing: E01-00001

High housing: E01-00012

ME2WK-B (101503)

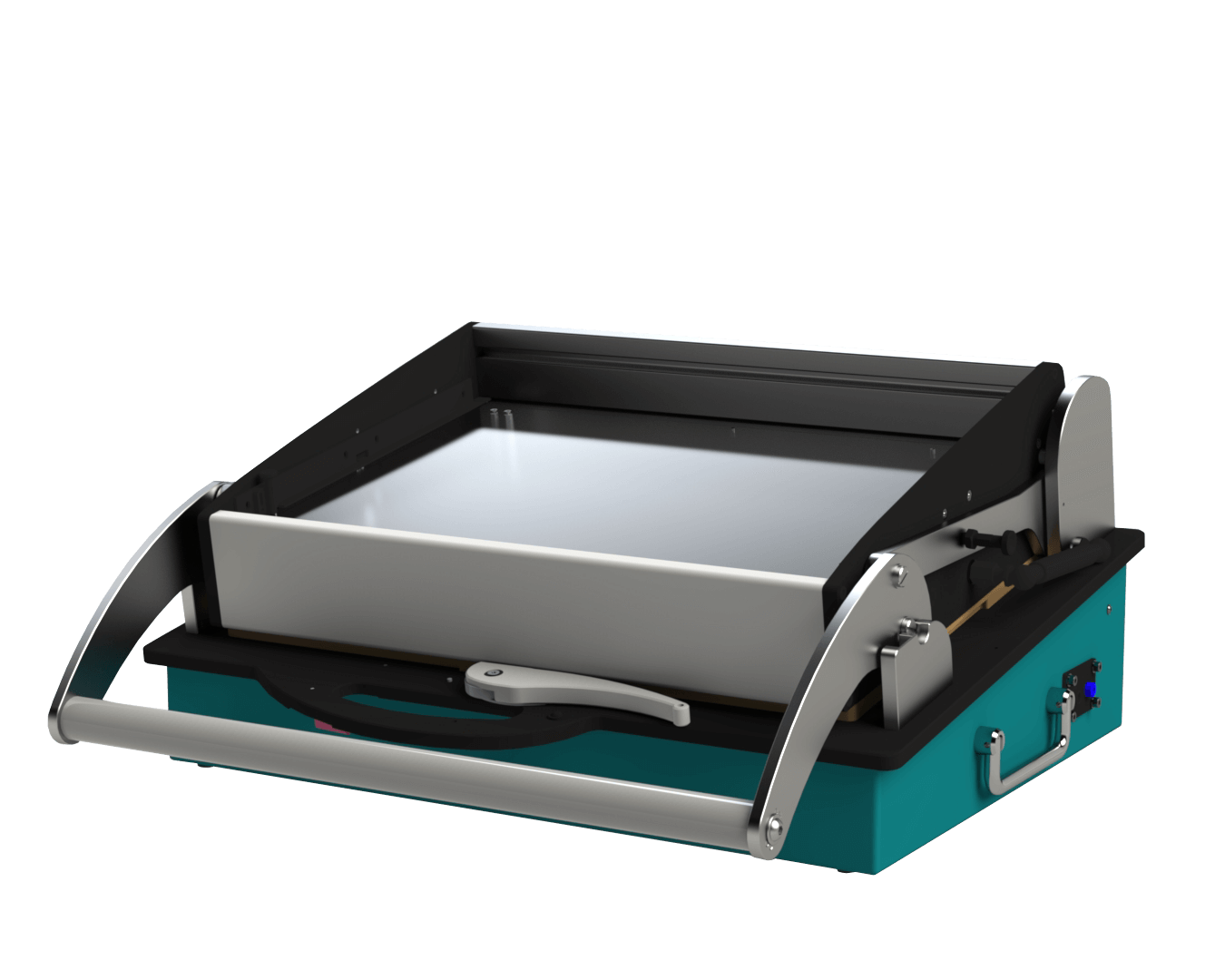

ME2WG-C

ME2WG-C (101500)

Moving plate: 445 x 304 mm

ME2WG-C (101500)

Moving plate: 445 x 304 mm

Needle force: 600 N

Standard housing: E01-00002

High housing: E01-00025

ME2WK-C (101502)

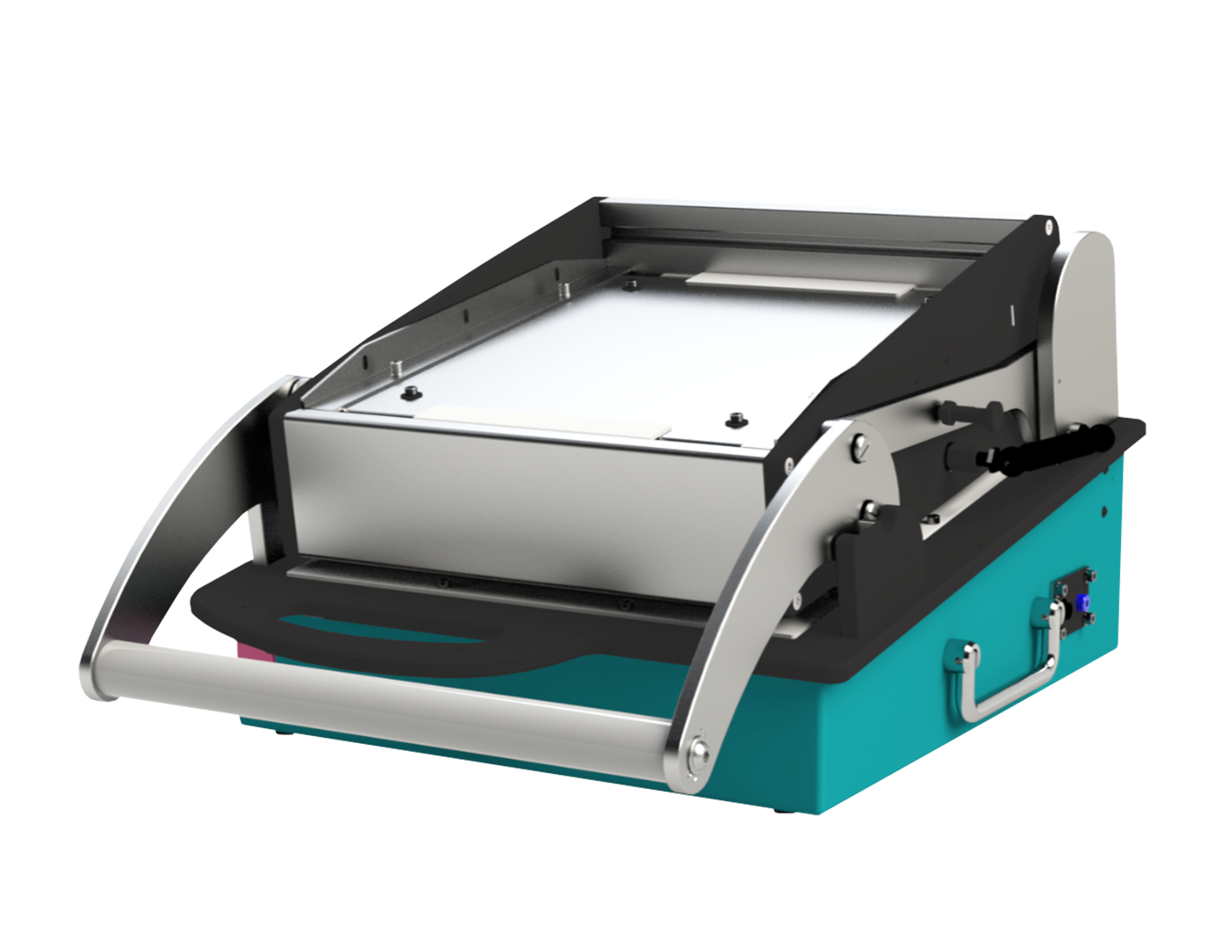

ME2HF-B

ME2HF-B (101508)

Moving plate: 235 x 265 mm

ME2HF-B (101508)

Moving plate: 235 x 265 mm

Needle force: 600 N

Standard housing: E01-00001

High housing: E01-00012

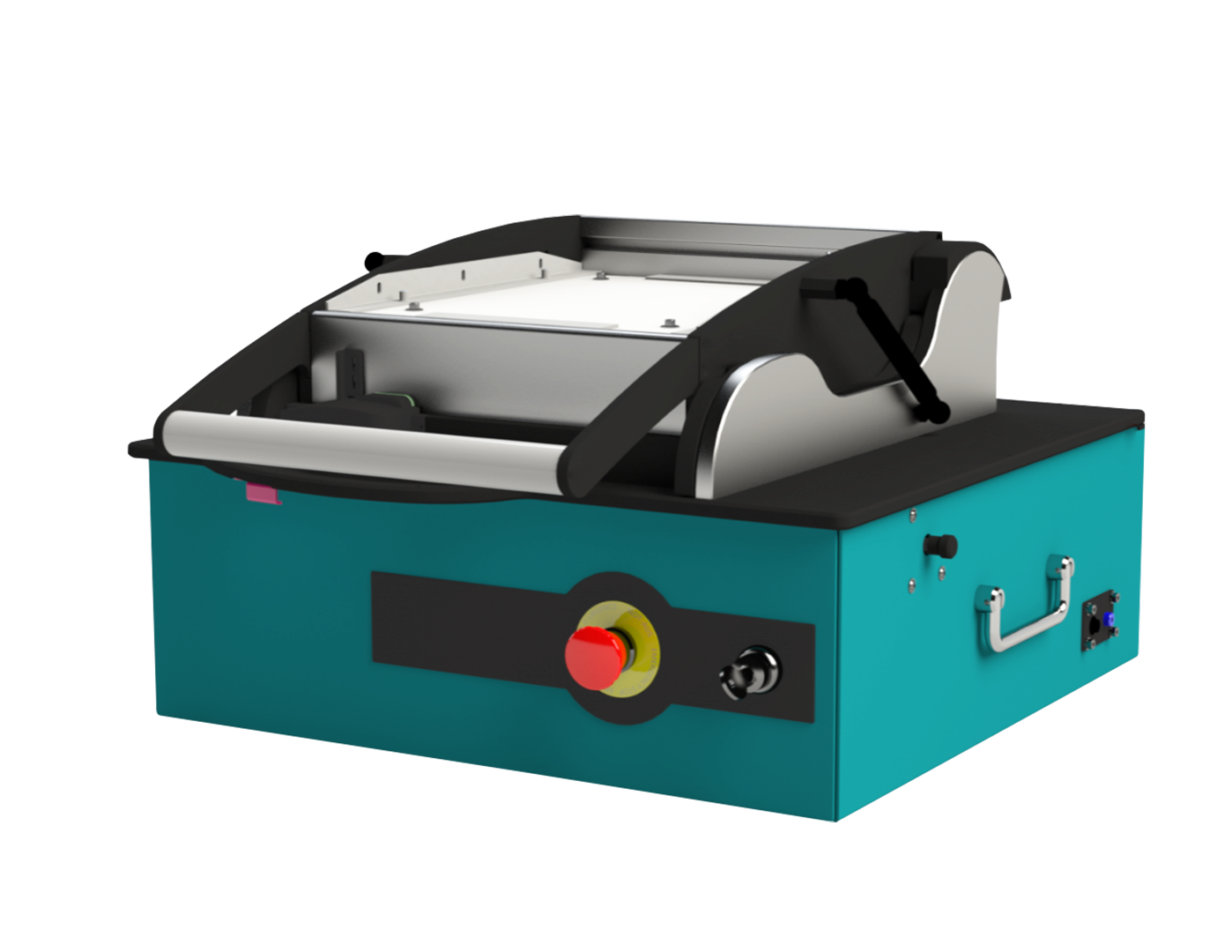

ME2PHF-B

ME2PHF-B (101512)

Moving plate: 235 x 265 mm

ME2PHF-B (101512)

Moving plate: 235 x 265 mm

Needle force: 600 N

Standard housing: E01-00204

High housing: E01-00012

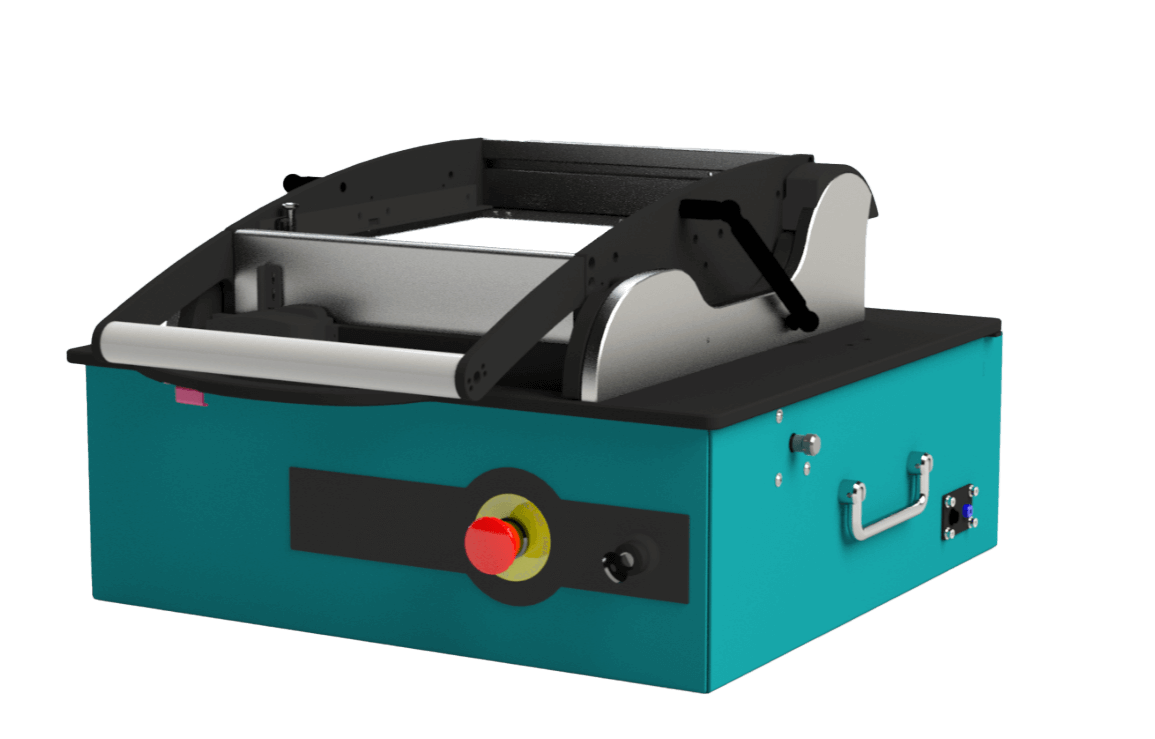

ME2P-B

ME2P-B (101504)

Moving plate: 275 x 304 mm

ME2P-B (101504)

Moving plate: 275 x 304 mm

Needle force: 600 N

Standard housing: E01-00204

High housing: E01-00012

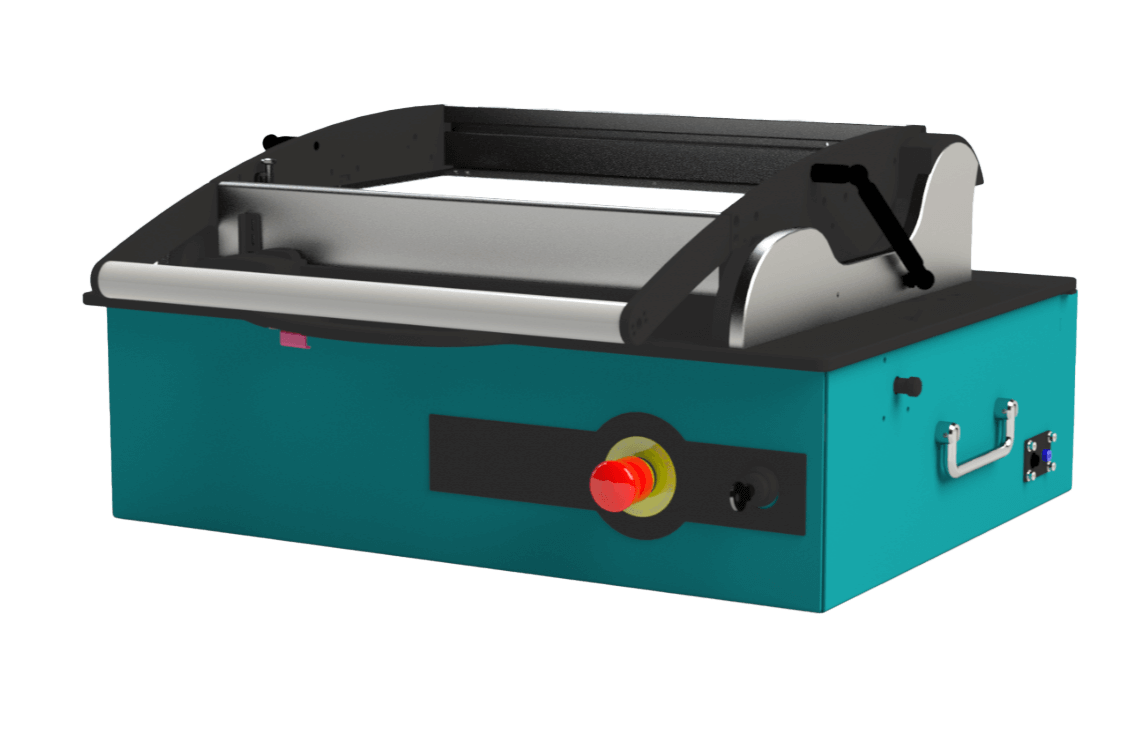

ME2P-C

ME2P-C (101505)

Moving plate: 445 x 304 mm

ME2P-C (101505)

Moving plate: 445 x 304 mm

Needle force: 600 N

Standard housing: E01-00207

High housing: E01-00025

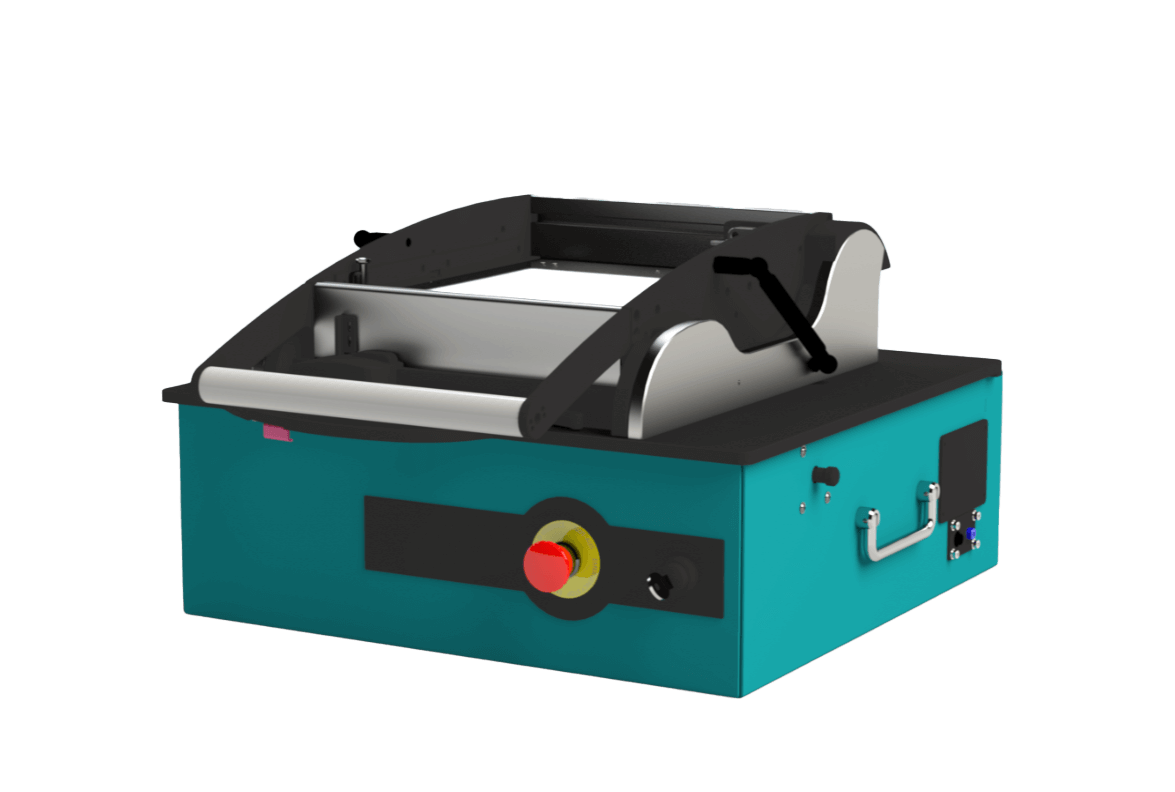

ME2PWG-B

ME2PWG-B (101506)

Moving plate: 275 x 304 mm

ME2PWG-B (101506)

Moving plate: 275 x 304 mm

Needle force: 600 N

Standard housing: E01-00204

High housing: E01-00116

ME2WK-B (101503)

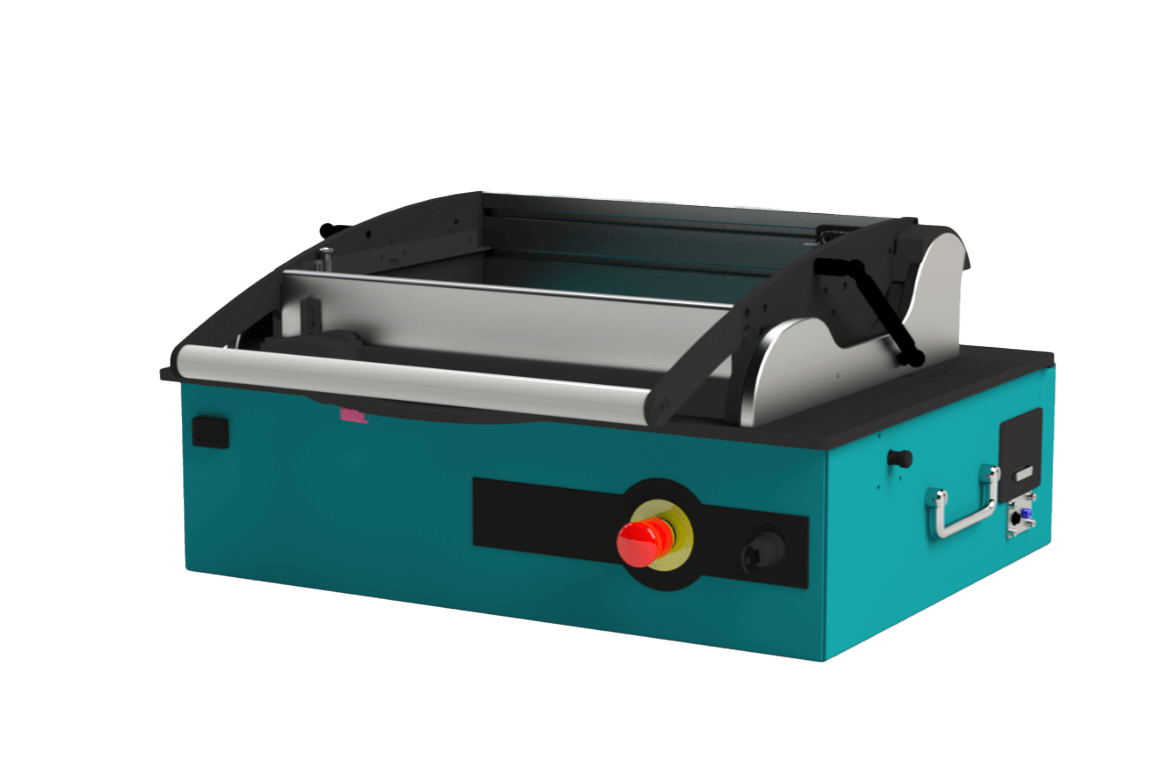

ME2PWG-C

ME2PWG-C (101507)

Moving plate: 445 x 304 mm

ME2PWG-C (101507)

Moving plate: 445 x 304 mm

Needle force: 600 N

Standard housing: E01-00207

High housing: E01-00118

ME2WK-C (101502)

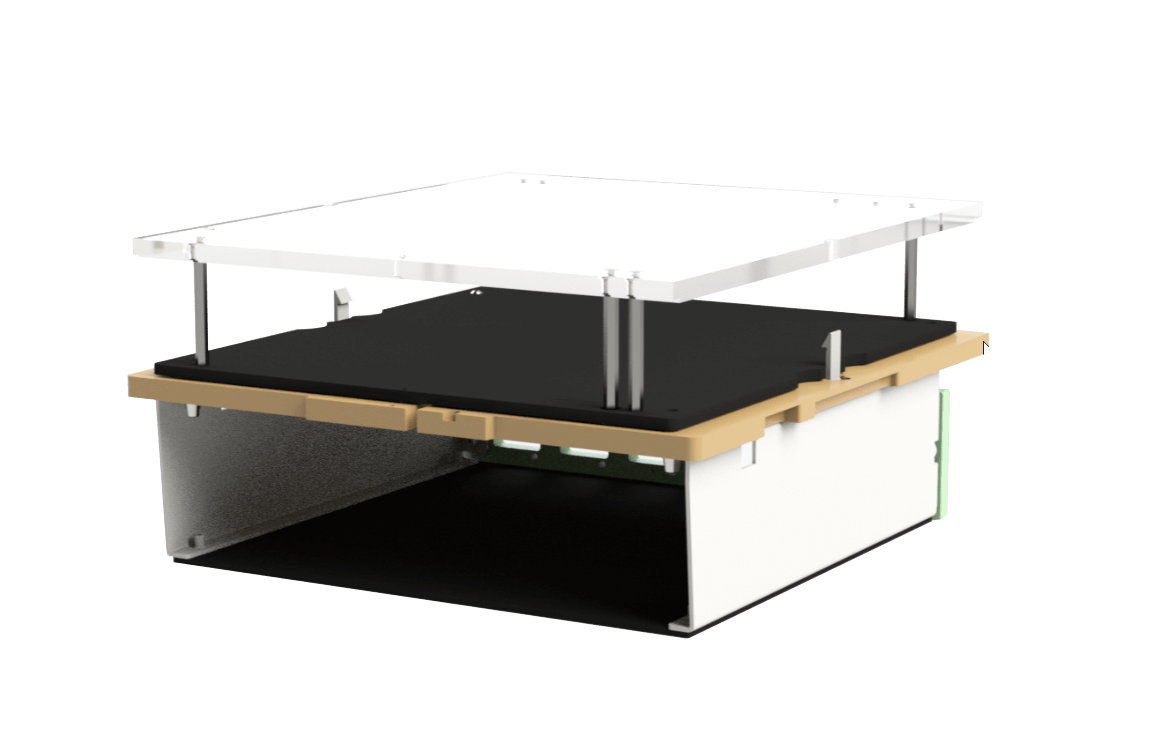

ME2WK-B

ME2WK-B (101503)

Moving plate: 275 x 304 mm

ME2WK-B (101503)

Moving plate: 275 x 304 mm

Suitable for basic device: ME2WG-B (101510)

> ME2PWG-B (101506)

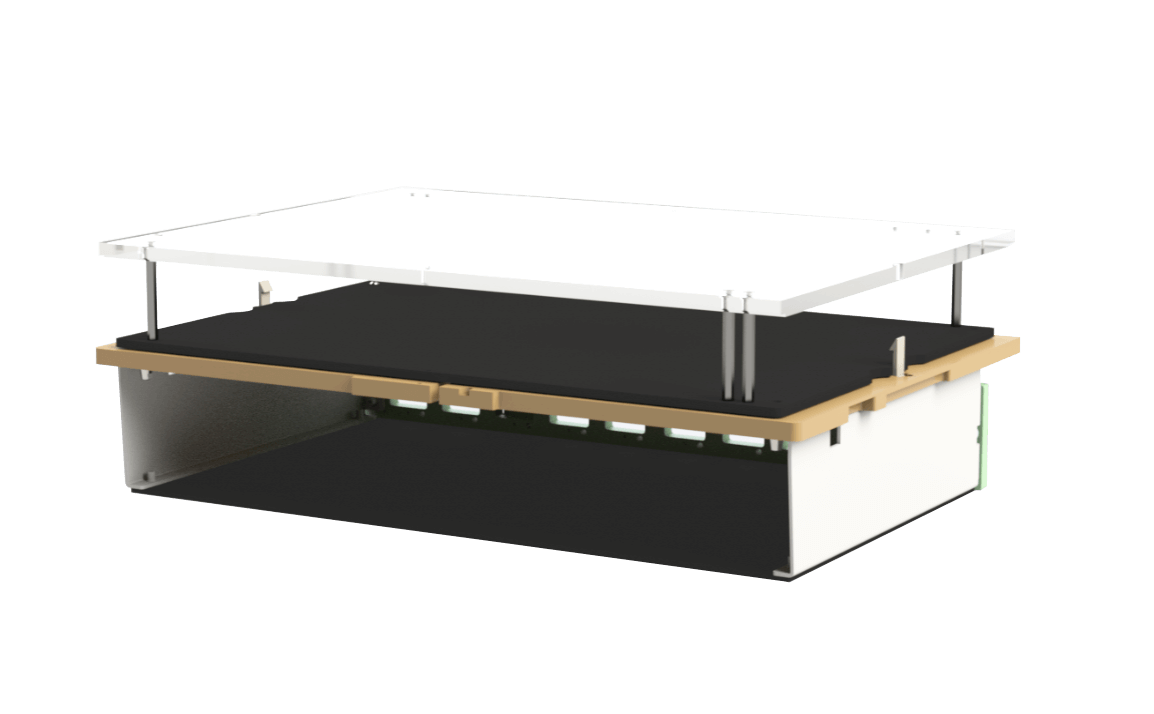

ME2WK-C

ME2WK-C (101502)

Moving plate: 445 x 304 mm

ME2WK-C (101502)

Moving plate: 445 x 304 mm

Suitable for basic device: ME2WG-C (101500)

> ME2PWG-C (101507)

MEE series

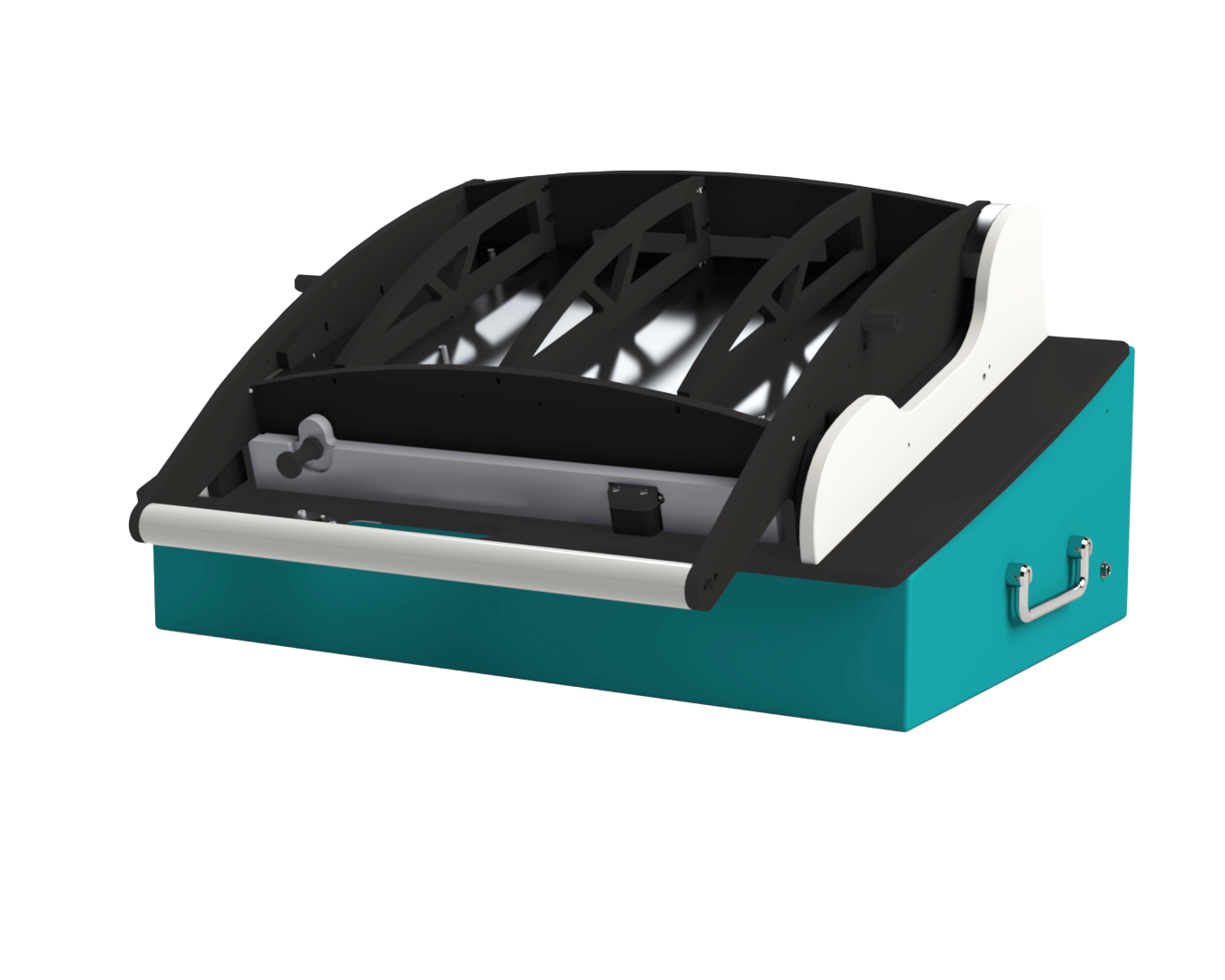

MEE-B

MEE-B (100845)

Moving plate: 275 x 230 mm

MEE-B (100845)

Moving plate: 275 x 230 mm

Needle force: 1,200 N

Standard housing: E01-00124

High housing: E01-00123

MEE-C

MEE-C (100846)

Moving plate: 445 x 310 mm

MEE-C (100846)

Moving plate: 445 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00061

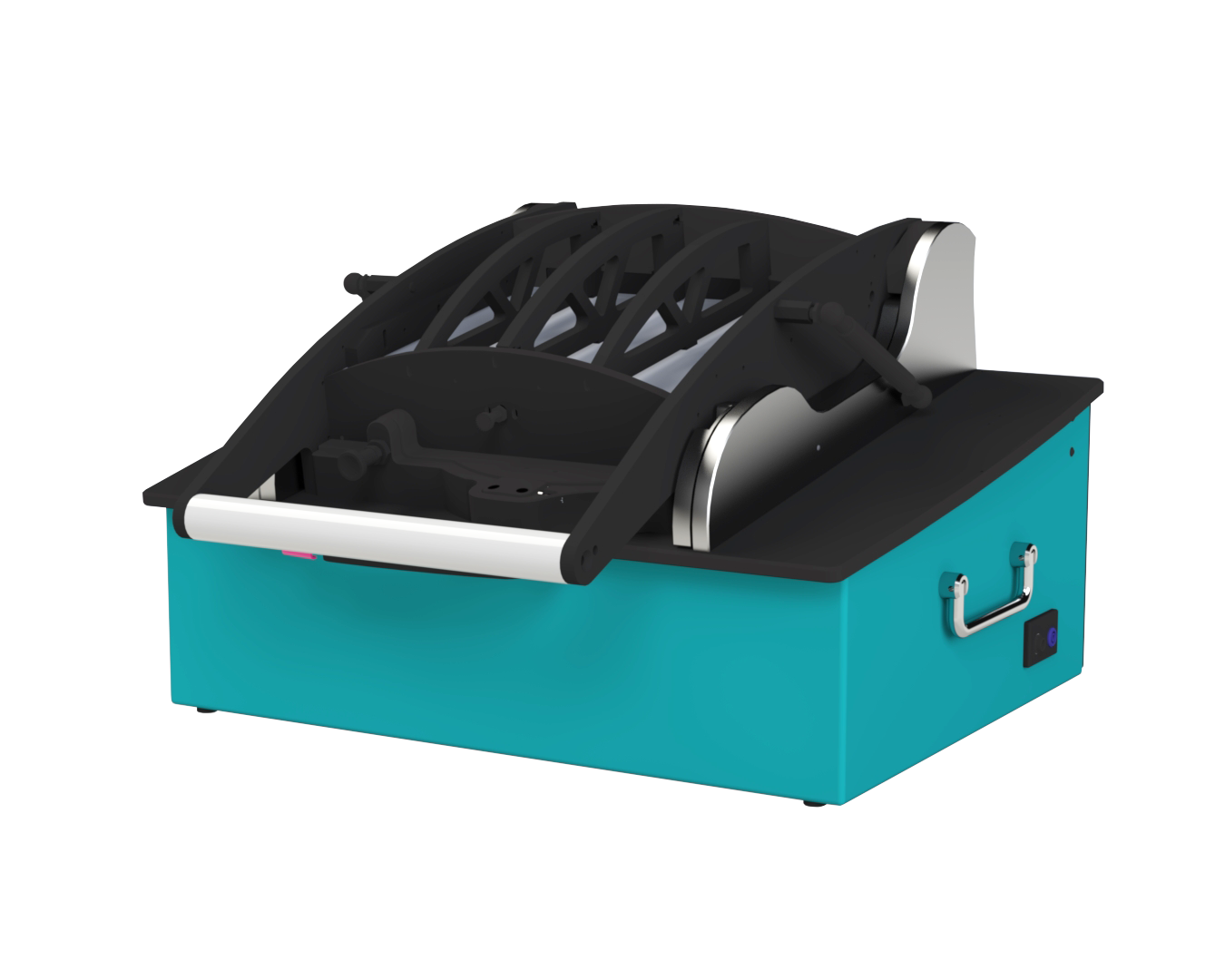

MEEWG-A

MEEWG-A (100847)

Moving plate: 240 x 275 mm

MEEWG-A (100847)

Moving plate: 240 x 275 mm

Needle force: 1,200 N

Standard housing: E01-00025

MEEWK-A (100848)

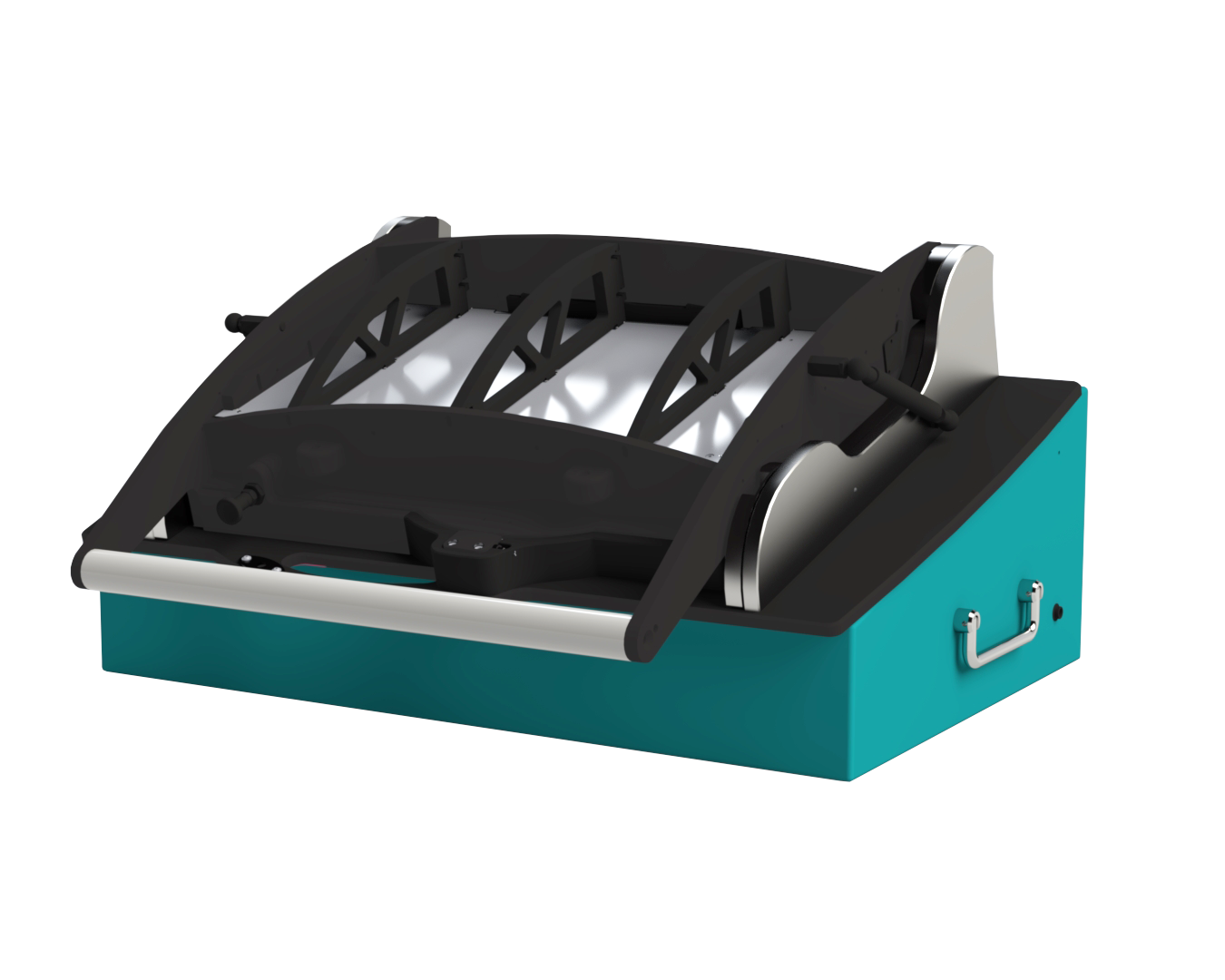

MEEWG-B

MEEWG-B (100849)

Moving plate: 445 x 240 mm

MEEWG-B (100849)

Moving plate: 445 x 240 mm

Needle force: 1,200 N

Standard housing: E01-00061

MEEWK-B (100850)

MEEWK-A

MEEWK-A (100848)

Moving plate: 240 x 275 mm

MEEWK-A (100848)

Moving plate: 240 x 275 mm

Suitable for basic appliance: MEEWG-A (100847)

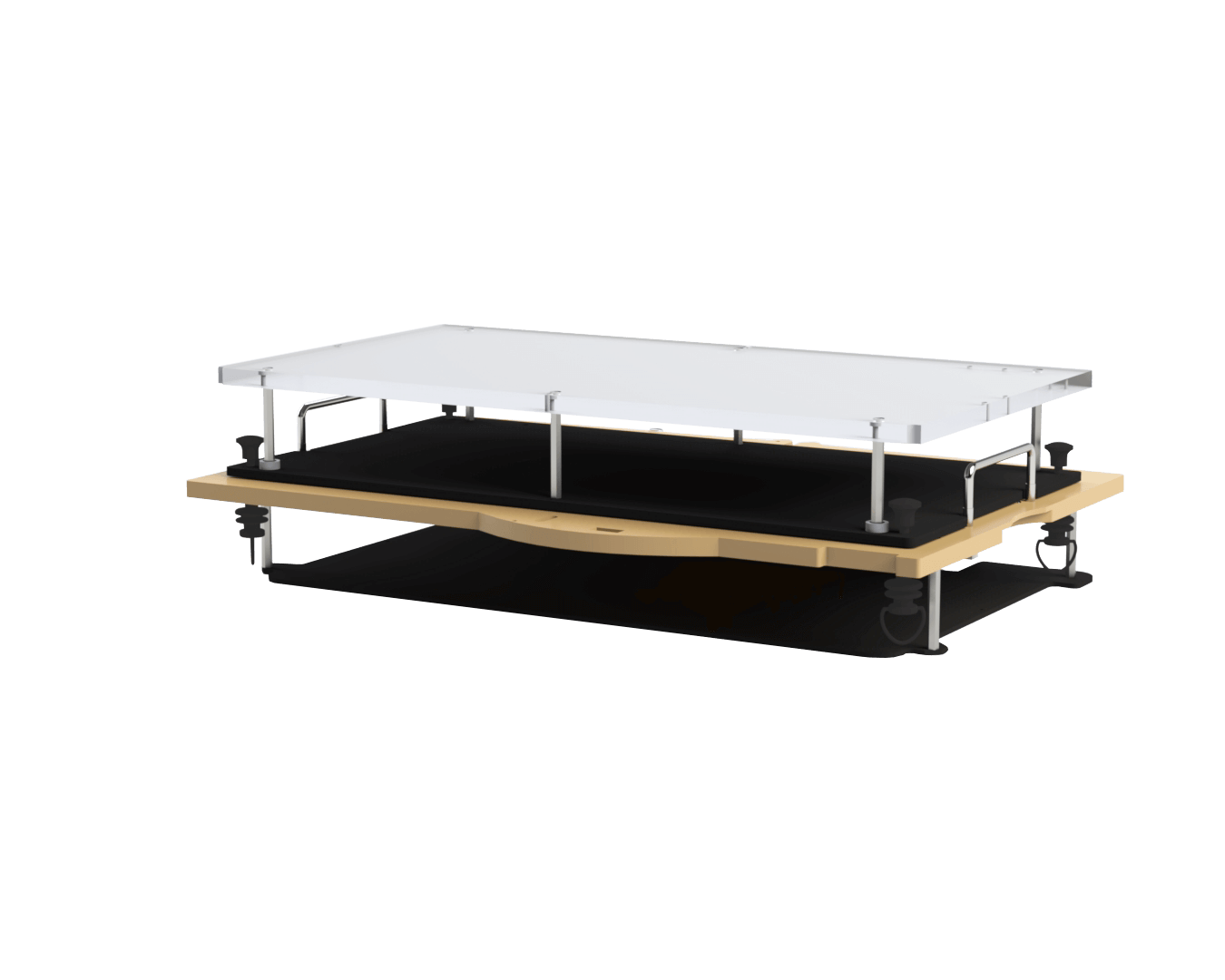

MEEWK-B

MEEWK-B (100850)

Moving plate: 445 x 240 mm

MEEWK-B (100850)

Moving plate: 445 x 240 mm

Suitable for basic device: MEEWG-B (100849)

MEP series

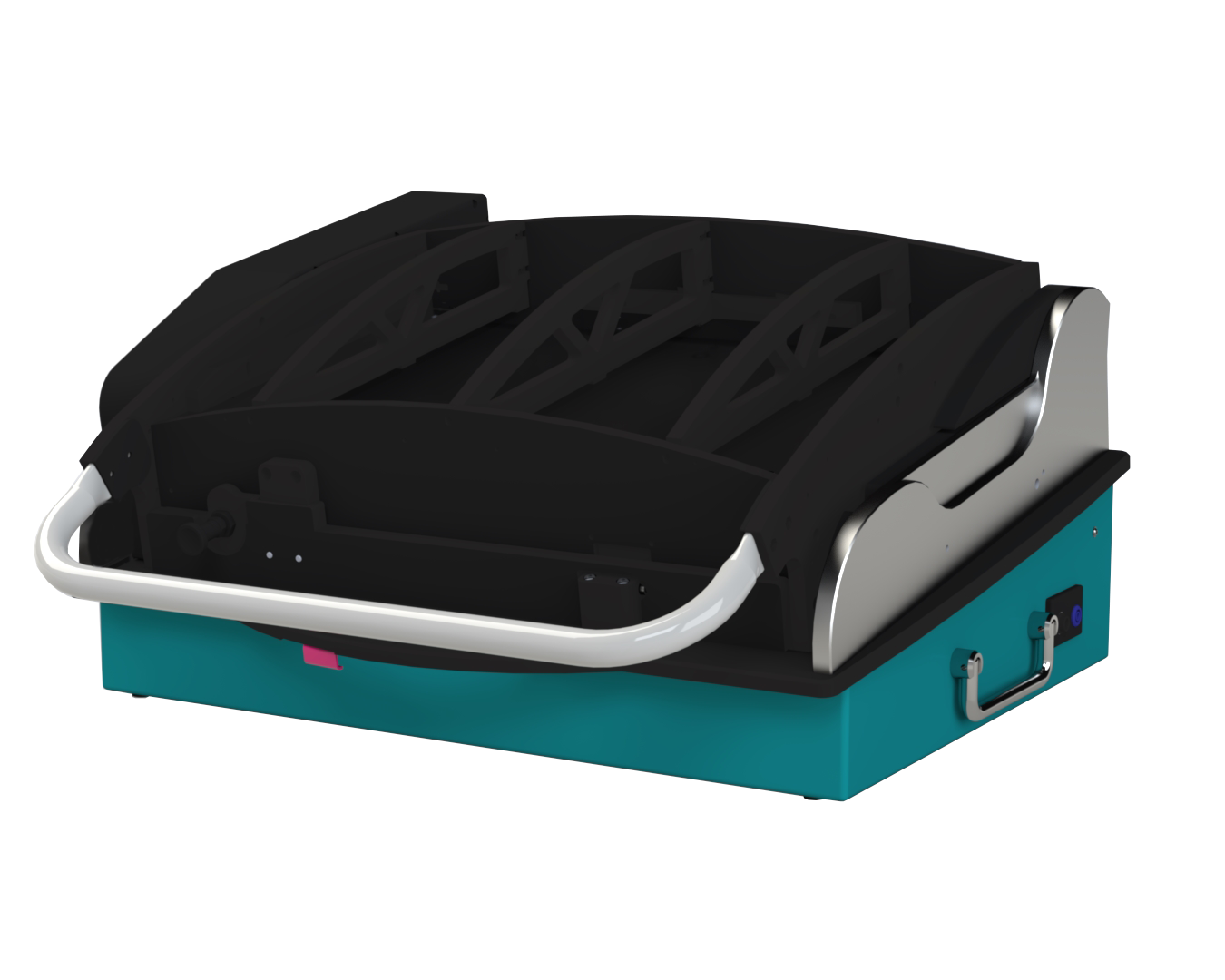

MEP100-B

MEP100-B (100246)

Moving plate: 275 x 310 mm

MEP100-B (100246)

Moving plate: 275 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00123

MEP100-C

MEP100-C (100239)

Moving plate: 445 x 310 mm

MEP100-C (100239)

Moving plate: 445 x 310 mm

Needle force: 1,200 N

Standard housing: E01-00133

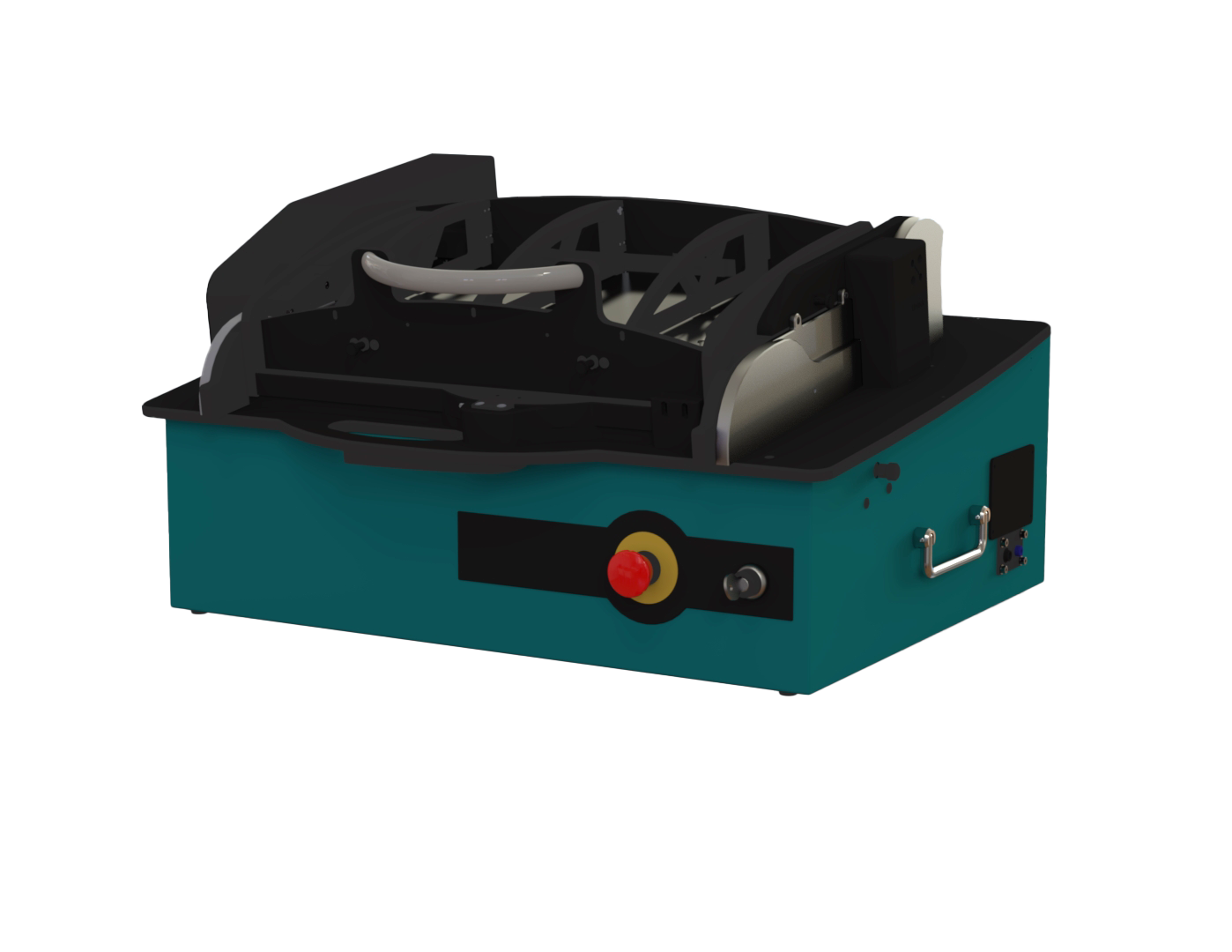

MEP100WG-B

MEP100WG-B (100266)

Moving plate: 445 x 240 mm

MEP100WG-B (100266)

Moving plate: 445 x 240 mm

Needle force: 1,200 N

Standard housing: E01-00133

MEP100WK-B (100270)

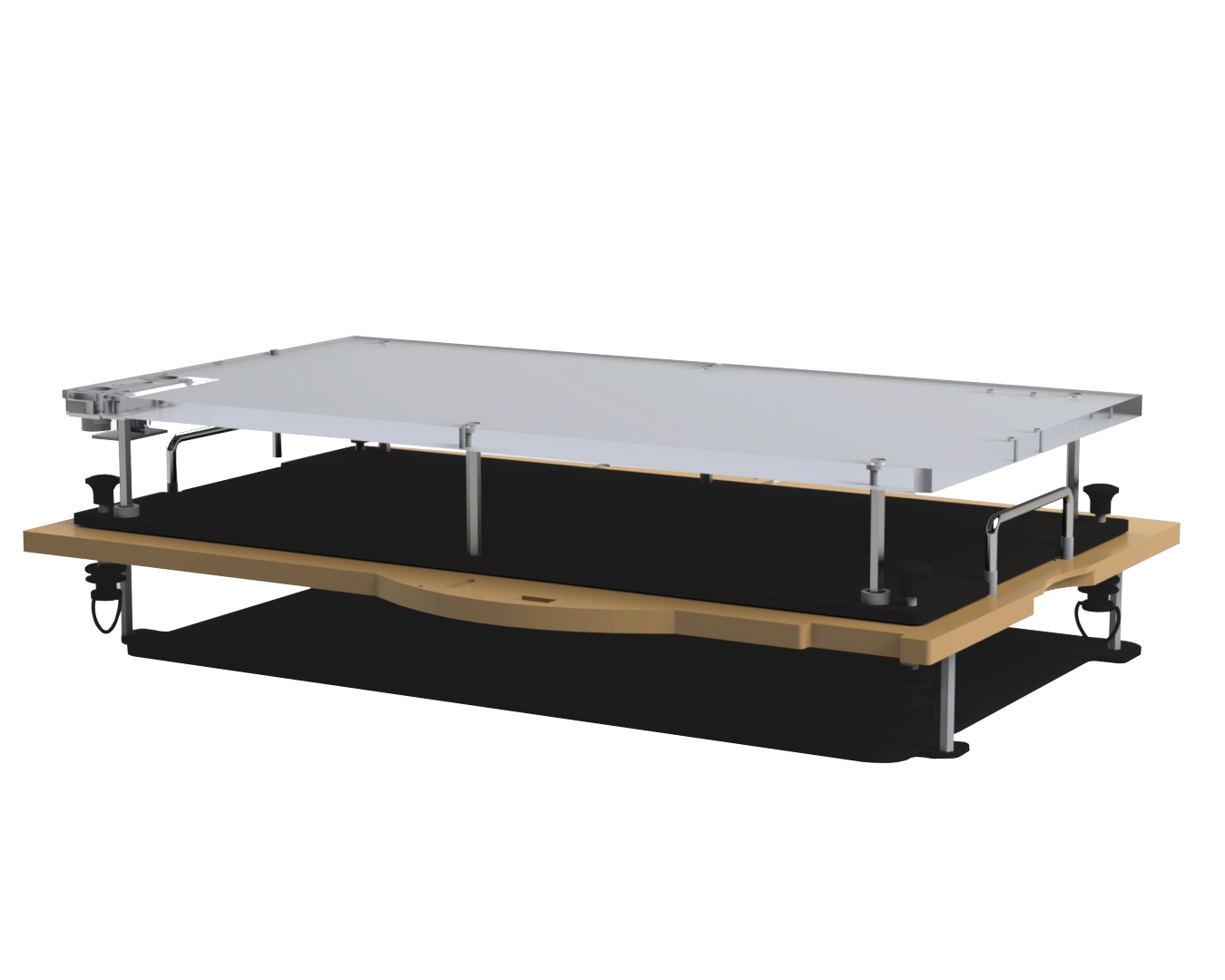

MEP100WK-B

MEP100WK-B (100270)

Moving plate: 445 x 240 mm

MEP100WK-B (100270)

Moving plate: 445 x 240 mm

Suitable for basic device: MEP100WG-B (100266)

PWG series

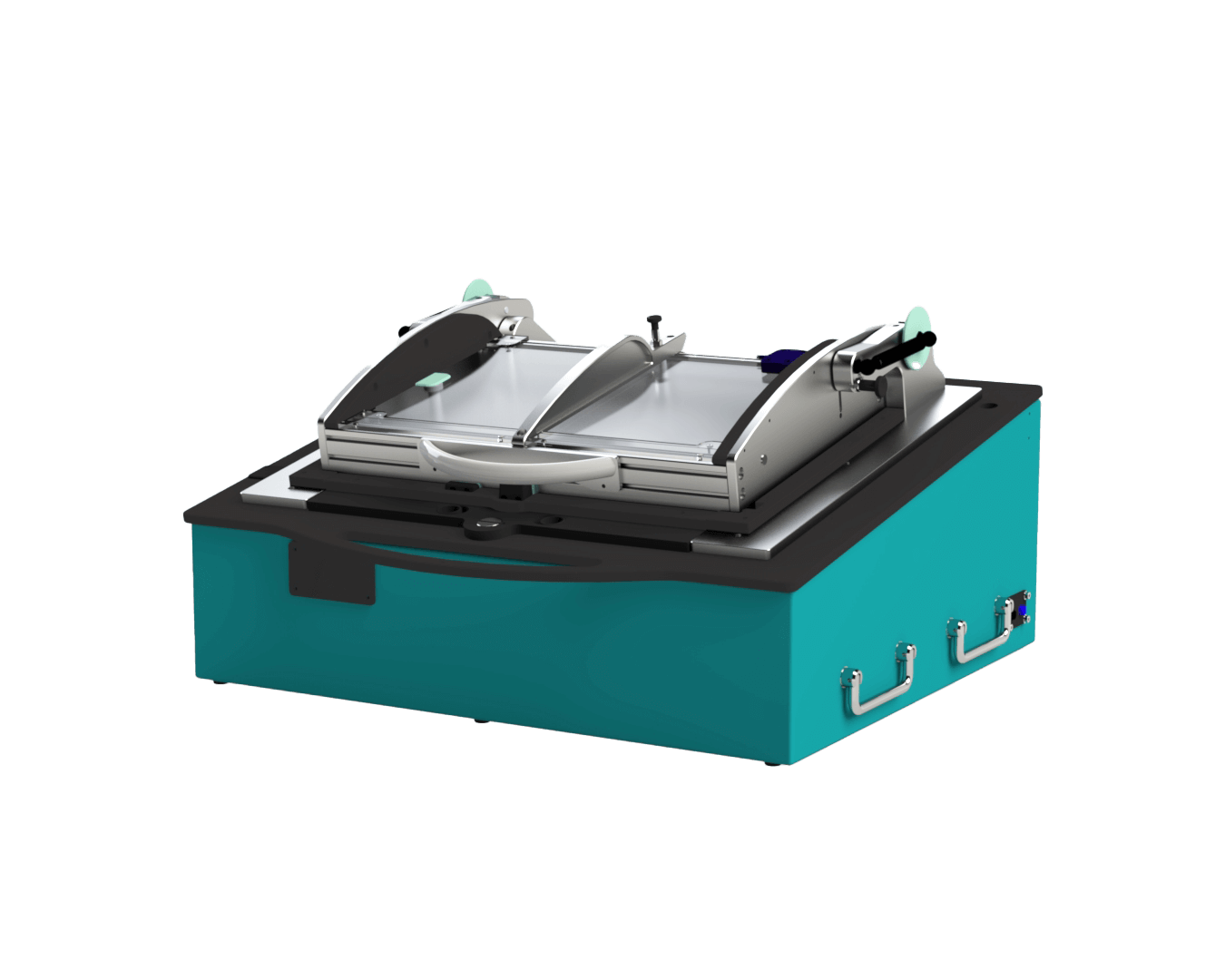

PWG pylon-1

PWG Pylon-1 (100978)

Moving plate: 444 x 276 mm

PWG Pylon-1 (100978)

Moving plate: 444 x 276 mm

Needle force: 2,000 N

Standard housing: E01-00109

PWK-Pylon-1 (100980)

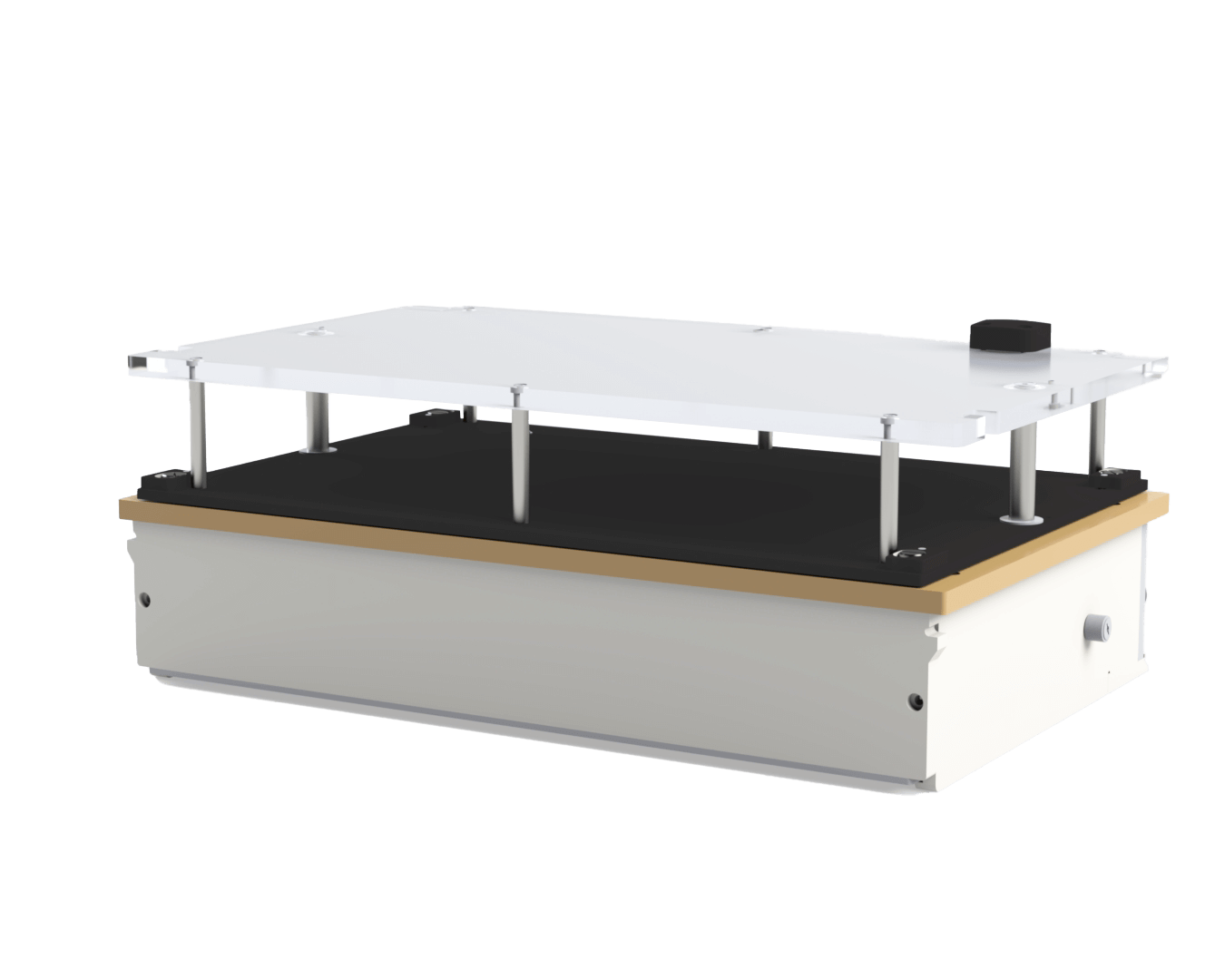

PWK pylon-1

PWK Pylon-1 (100980)

Moving plate: 444 x 276 mm

PWK Pylon-1 (100980)

Moving plate: 444 x 276 mm

Suitable for base unit:

> PWG Pylon-1 (100978)
