Burn IN Rack

Cabinet dimensions

• Height: 42U (187 cm)
• Wide: 19" (60 cm)
• Deep: 80 cm

Test method

Cabinet characteristics

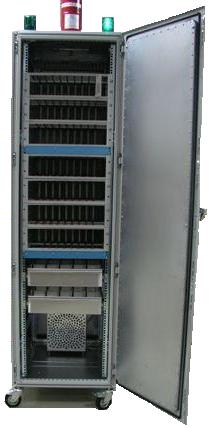

1. The cabinet has two doors (one in the front and one in the rear).
2. Each door has a handle for easy use.
3. The interior of the cabinet has thermal isolation on all sides (including the doors).
4. The cabinet has four wheels for easy movement.
5. The heating system can raise the internal cabinet temperature up to 70°C.
6. The heating system is safely protected.
7. The air circulation system creates a uniform temperature environment.
8. For safety reasons, there is a secondary temperature controller set to 15°C above the cabinet temperature.
9. There is a safety switch on the two doors. When a door is opened, the heater, fan, and any high-voltage power source inside the cabinet are turned off.
10. There are two large indicator lamps on top of the cabinet to indicate cabinet status (test mode, heaters on).

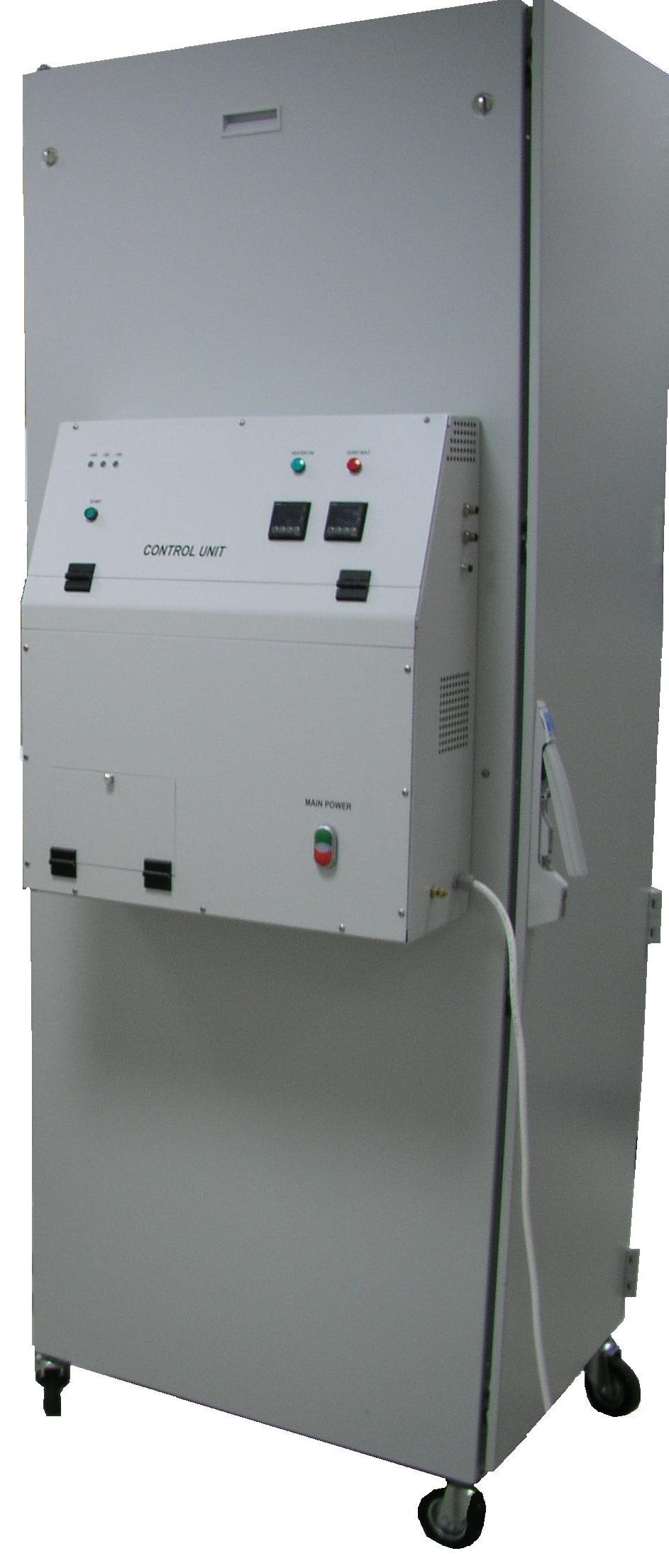

11. There is a control and power box attached on the right side of the cabinet.
12. A fire extinguisher is installed in the cabinet with independent actuation and no need for external power.
